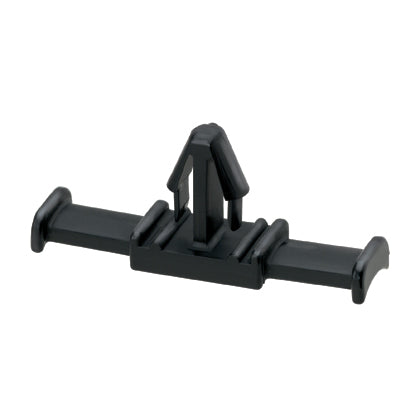

Panduit THMSP20-C30 | Cable Tie Mount | UPC - 07498338391
Regular price
$86.10
Unit price
Brand: Panduit
|
SKU:
PAN-THMSP20-C30
Regular price
$86.10
Unit price
Description
Description
Panduit Cable Tie Mount, Harness, Push Barb Mounting, 4.8 mm Maximum Tie Width, 1.54 in Base Length, 0.37 in Base Width, Nylon 6.6, Black
Features + Benefits
- Designed to be attached to the wire harness during assembly
- Cable ties can be installed by hand or with Panduit automatic cable tie tools
- Used with harness board standoff posts
- Heat stabilized nylon material (30) for high temperature applications
- For use with miniature, intermediate and standard cable ties
Panduit THMSP20-C30 | Cable Tie Mount | UPC - 07498338391 Key Specs
| Application | Tie Harness Mount to be attached to the wire harness during assembly. Used with harness board standoff posts and available with or without corrugated tubing location tab. Can be used for indoor and high temperature applications. |
| Note | High Temperature |
| Product Type | Cable Tie Mount |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Heat Stabilized Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.16 |
| Maximum Compatible Panel Thickness (mm) | 4.1 |
| Mount Method | Push Barb |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 4.1 |
| Overall Length (In.) | 1.54 |
| Overall Length (mm) | 39.1 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Resistance Properties | Heat and Wear Resistant |
| Standards Met | UL Recognized:E136577, RoHS Compliant |
Panduit THMSP20-C30 | Cable Tie Mount | UPC - 07498338391 Data Sheets
| Product Bulletins | Product Bulletin - SA-WACB20 Harness Board Acc WEB 8-23-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - THMSP20-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - THMSP_R8 | Download and View |
Panduit THMSP20-C30 | Cable Tie Mount | UPC - 07498338391 Environmental Information
| Panduit's RoHS Statement | Download and View |
