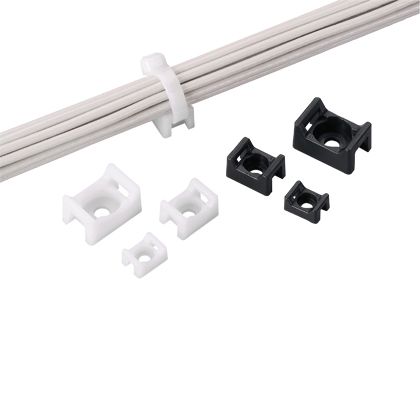

Panduit TM1A-M | Cable Tie Mount
Regular price
$225.05
Unit price
Brand: Panduit
|
SKU:
429017
Regular price
$225.05
Unit price
Description
Description
Panduit TM1A-M | Cable Tie Mount
Perfect for extreme environments, our winged push barb cable tie mount resist chemicals, radiation, and UV. Ideal for nuclear and chemical plants, they ensure secure cable management indoors or out.
Cable Tie Mounts ù User Supplied Adhesives
Panduit Cable Tie Mount, Adhesive Mounting, 0.098 in Maximum Tie Width, 0.51 in Base Length, 0.32 in Base Width, Nylon 6.6, Natural
Panduit - TM1A-M - Features
- Solid flat bottom surface provides maximum holding area
- User supplied adhesive
- Solid flat bottom surface provides maximum holding area
- For indoor use only
- Material: Nylon 6.6
Specifications
Specifications
Panduit - TM1A-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM1A-M |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Note | Customer must supply adhesive |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Solid Flat Bottom Surface Provides Maximum Holding Area in Indoor Use |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Mount Method | Adhesive |
| Overall Length (In.) | 0.51 |
| Overall Length (mm) | 13 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 8 |
| Overall Height (In.) | 0.23 |
| Overall Height (mm) | 5.8 |
| UPC | 07498358081 |
Panduit - TM1A-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
