Brand: Panduit
|
SKU:
263025
Panduit TM2R6-M | TM2R6-M Cable Tie Mount
Regular price
$256.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TM2R6-M | TM2R6-M Cable Tie Mount
Regular price
$256.84
Unit price
Description
Description
Panduit TM2R6-M | TM2R6-M Cable Tie Mount

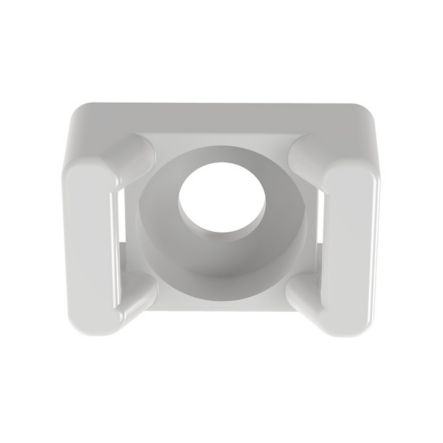

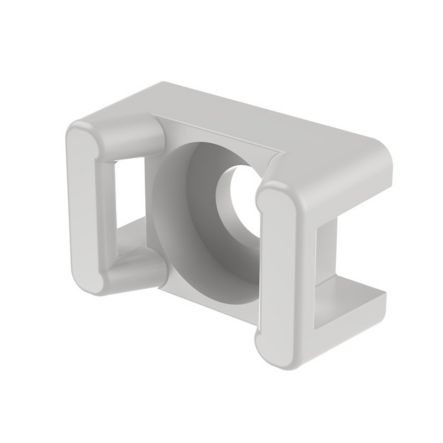

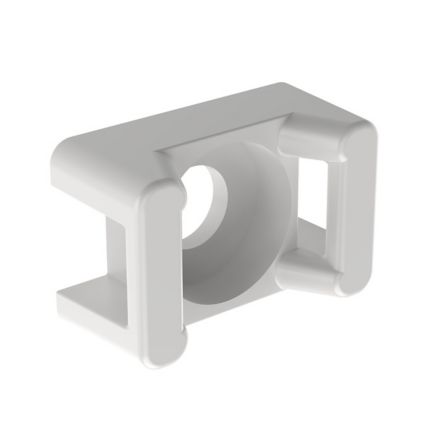

The cable tie mount in natural color is applied with a rivet and is 0.43" (10.9 mm) wide. It uses a #6 (M3) screw and is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.
Panduit - TM2R6-M - Features
- Unique cradle design provides maximum stability for the cable bundle
- Low profile design keeps bundle close to mounting surface where overhead space is limited
Specifications
Specifications
Panduit - TM2R6-M - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM2R6-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM2R6-M |
| Item Description | TM2R6-M Cable Tie Mount |
| Application | Cable Tie Mount applied with a rivet for indoor use |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.275 |
| Overall Height (mm) | 7 |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.425 |
| Overall Width (mm) | 10.8 |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - TM2R6-M - Package Information
| UPC | 07498358181 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1334 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 0.6669 |
