Panduit TM2S6-C0 | TM2S6-C0 Cable Tie Mount
Regular price
$61.36
Unit price
Brand: Panduit
|
SKU:
10153415
Regular price
$61.36
Unit price
Description
Description

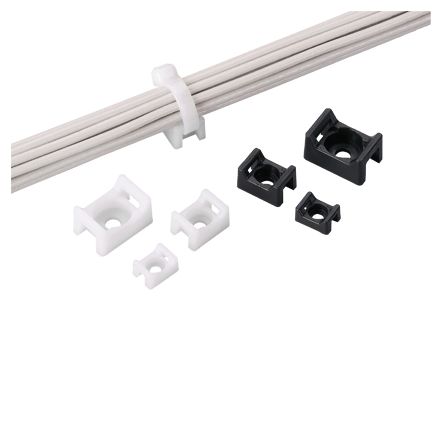

Panduit TM2S6-C0 | TM2S6-C0 Cable Tie Mount
The cable tie mount in black is applied with a #6 (M3) screw and is 0.43" (10.9 mm) wide. It is made of weather-resistant nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in outdoor environments. It comes in packages of 100.
Panduit TM2S6-C0 Panduit Tm2s6c0 Cable Managemepk/100
Specifications
Specifications
Panduit - TM2S6-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM2S6-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM2S6-C0 |
| Item Description | TM2S6-C0 Cable Tie Mount |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #6 |
| Overall Height (In.) | 0.275 |
| Overall Height (mm) | 7 |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.425 |
| Overall Width (mm) | 10.7 |
| Resistance Properties | UV Resistant |
| Standards Met | cULus 62275 Type 2,21 (E136577), CE Compliant, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - TM2S6-C0 - Package Information
| UPC | 07498358988 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0266 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1329 |
