Panduit TM2S8-C | Cable Tie Mount, Natural, PA 6.6, 0.63x0.43"...
Description
Description
Perfect for extreme environments, our winged push barb cable tie mount resist chemicals, radiation, and UV. Ideal for nuclear and chemical plants, they ensure secure cable management indoors or out.

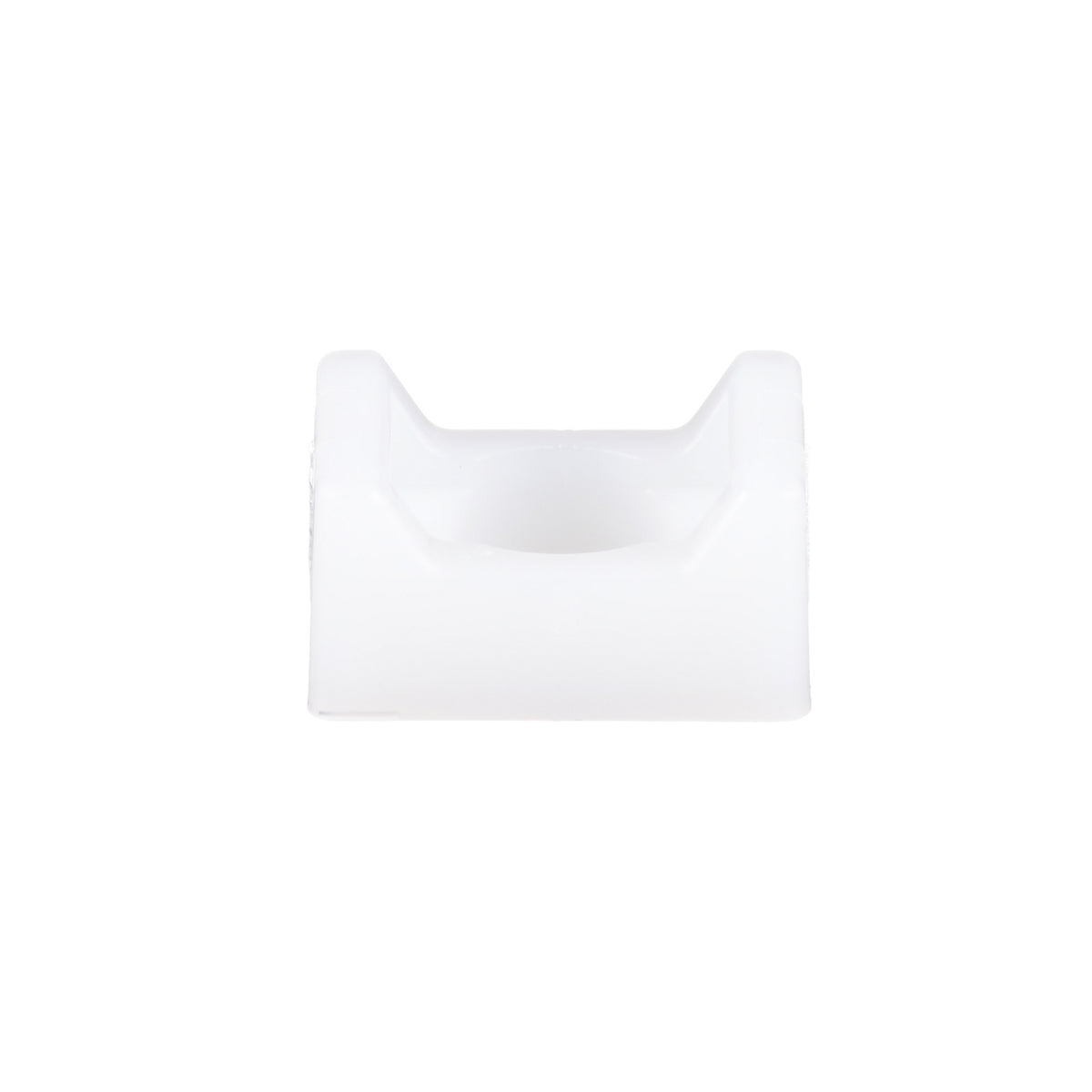

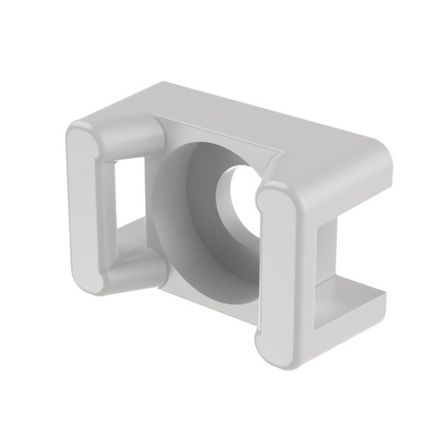

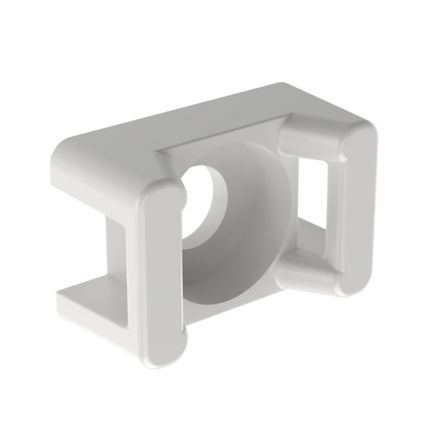

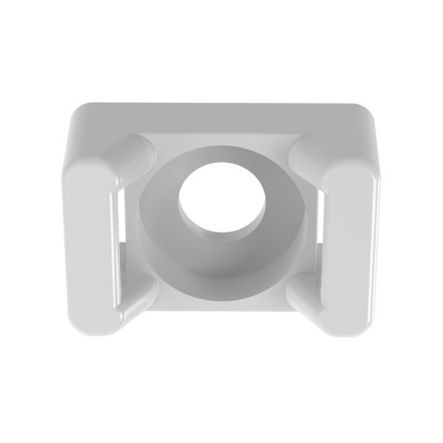

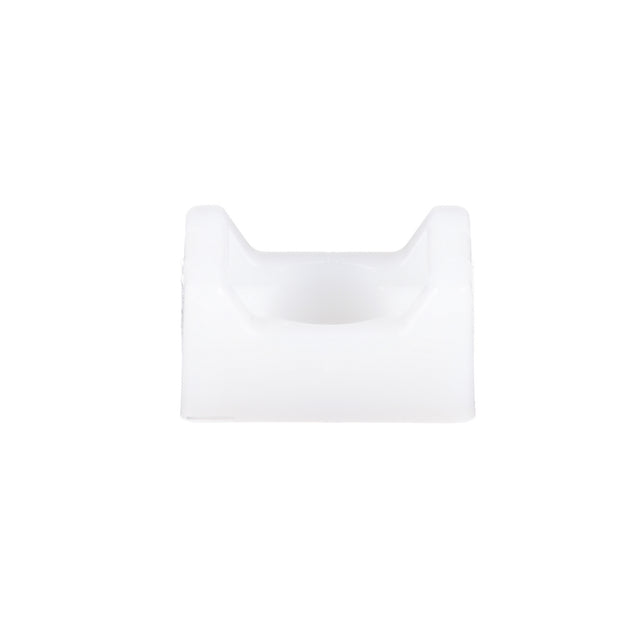

Panduit TM2S8-C screw applied cable tie mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are 0.43" (10.9 mm) wide, are natural in color and come in packages of 100.
Panduit Cable Tie Mount, 2-Way Tie Entry, Threaded Mount, 0.19 in Maximum Tie Width, 0.63 in Base Length, 0.43 in Base Width, Nylon, Natural
Panduit - TM2S8-C - Features
- Unique cradle design provides maximum stability for cable bundle
- Low profile design keeps bundle close to mounting surface where overhead space is limited
- For use with miniature, intermediate and standard cable ties
- Unique cradle design provides maximum stability for the cable bundle
- Low profile design keeps bundle close to mounting surface where overhead space is limited
- Specification Description
- Cable Tie Mount
- Material: Nylon 6.6
- Color: Natural
- Mounting Method: #8 (M4) Screw
- Style: Medium
- Hole Diameter: 0.18 Inch (4.5 mm)
- Maximum Continuous Use Temperature: 185 deg F ( 85 deg C)
- Temperature Range: -76 to 185 deg F (-60 to 85 deg C)
- Dimension: 0.63 Inch Length x 0.43 Inch Width x 0.28 Inch Height (16 mm x 10.8 mm x 7 mm)
Specifications
Specifications
Panduit - TM2S8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM2S8-C |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #8 |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.43 |
| Overall Width (mm) | 10.8 |
| Overall Height (In.) | 0.27 |
| Overall Height (mm) | 7 |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
| UPC | 07498358220 |
Panduit - TM2S8-C - Videos
| Panduit TM2S8-C Video 1 | Click to View |
|---|
