Panduit TM2S8-C | TM2S8-C Cable Tie Mount, Natural, PA 6.6, 0.63x0....
Description
Description

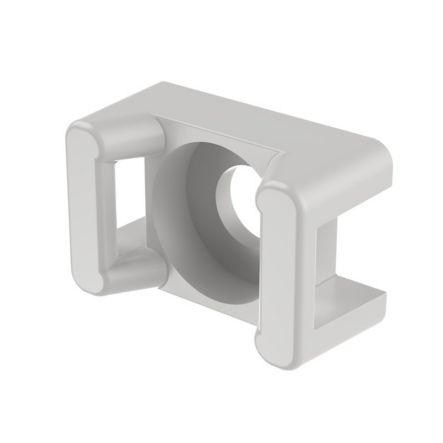

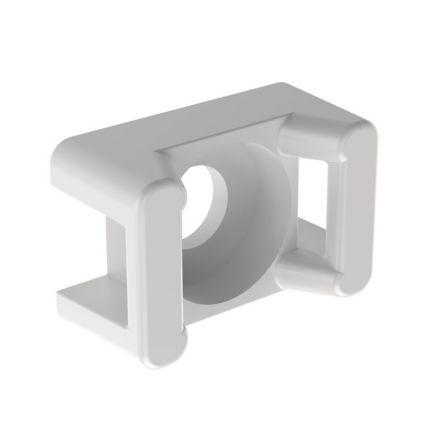

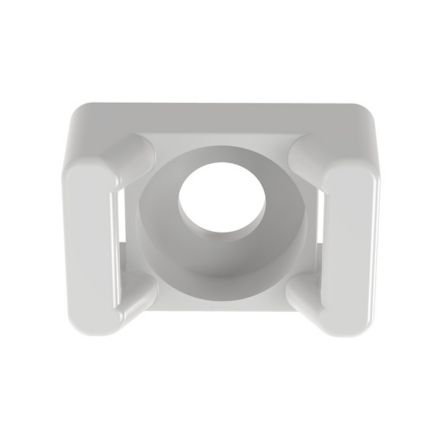

Panduit TM2S8-C screw applied cable tie mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. Suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They are 0.43" (10.9 mm) wide, are natural in color and come in packages of 100.
Panduit TM2S8-C - MOUNT - MOUNT #8 SCREW CABLE TIE
Specifications
Specifications
Panduit - TM2S8-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM2S8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM2S8-C |
| Item Description | TM2S8-C Cable Tie Mount, Natural, PA 6.6, 0.63x0.43", #8 Screw, PK100 |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 |
| Overall Height (In.) | 0.275 |
| Overall Height (mm) | 7 |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.43 |
| Overall Width (mm) | 10.8 |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - TM2S8-C - Package Information
| UPC | 07498358220 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0266 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1329 |
