Panduit TM2S8-C76 | TM Cable Tie Mount
Regular price
$180.56
Unit price
Brand: Panduit
|
SKU:
10083550
Regular price
$180.56
Unit price
Description
Description

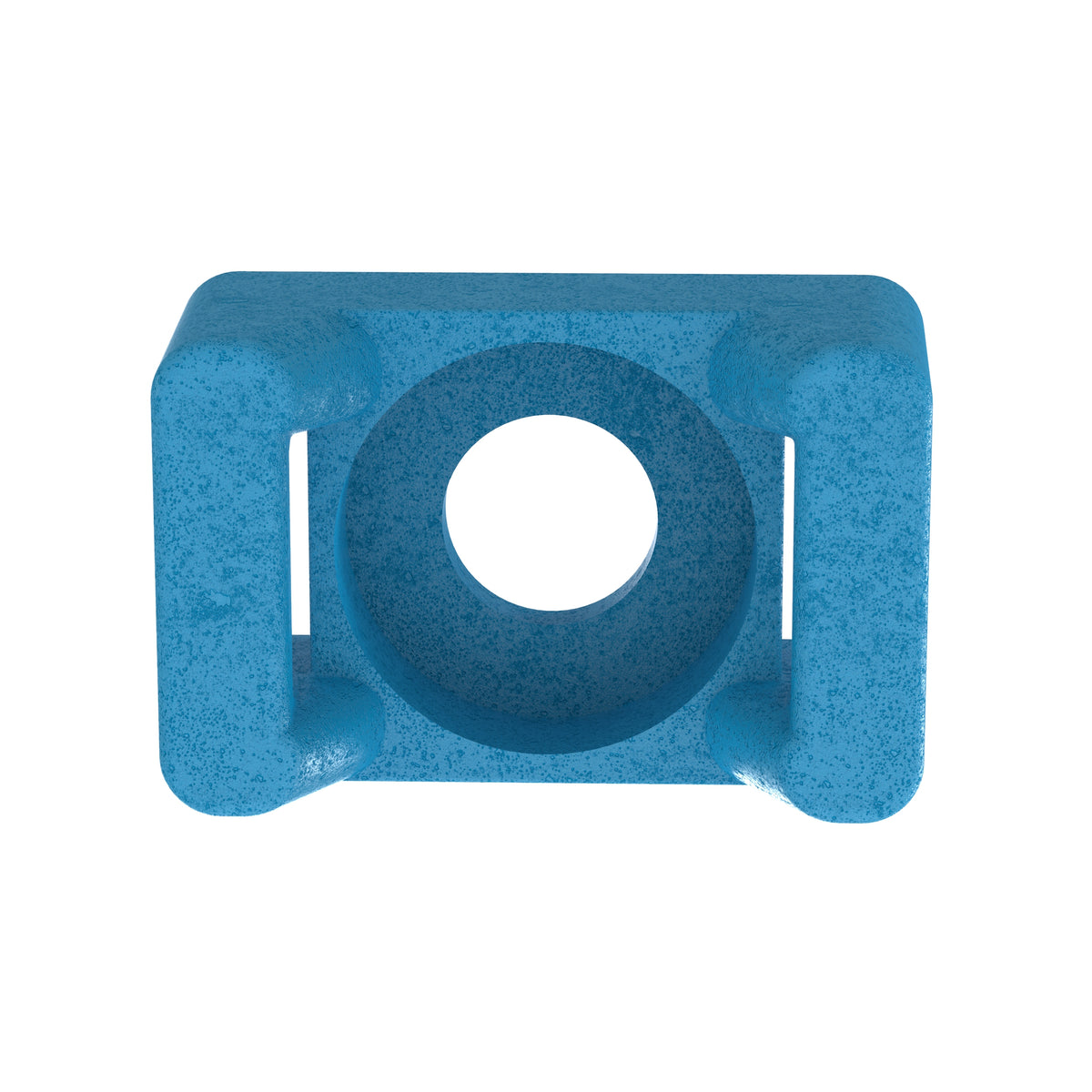

Panduit TM2S8-C76 | TM Cable Tie Mount
Panduit Cable Tie Mount, Threaded Mounting, 0.63 in Base Length, 0.43 in Base Width, Tefzel, Aqua
Perfect for extreme environments, our winged push barb cable tie mount resist chemicals, radiation, and UV. Ideal for nuclear and chemical plants, they ensure secure cable management indoors or out.
Panduit - TM2S8-C76 - Features
- Unique cradle design provides maximum stability for cable bundle
- Low profile design keeps bundle close to mounting surface where overhead space is limited
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - TM2S8-C76 - Specifications
| Material Description | ETFE (Chemical-Resistant, UV-Resistant, Weather-Resistant) |
|---|---|
| Product Type | Cable Tie Mount |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Color | Aqua |
| Flammability Rating | UL94V-0 |
| Environment | Indoor |
| Material | ETFE |
| Maximum Operating Temperature (°C) | 170 |
| Maximum Operating Temperature (°F) | 338 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #8 |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.43 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.27 |
| Overall Height (mm) | 7 |
| Resistance Properties | Chemical-Resistant, UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| UPC | 07498381366 |
Panduit - TM2S8-C76 - Package Information
| UPC | 07498381366 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0546 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2728 |
Panduit - TM2S8-C76 - Videos
| Panduit TM2S8-C76 Videos | Click to View |
|---|
