Panduit TM2S8-C96A | Anitmicrobial Met-Det Mount
Regular price
$83.55
Unit price
Brand: Panduit
|
SKU:
10483196
Regular price
$83.55
Unit price
Description
Description
Panduit TM2S8-C96A | Anitmicrobial Met-Det Mount

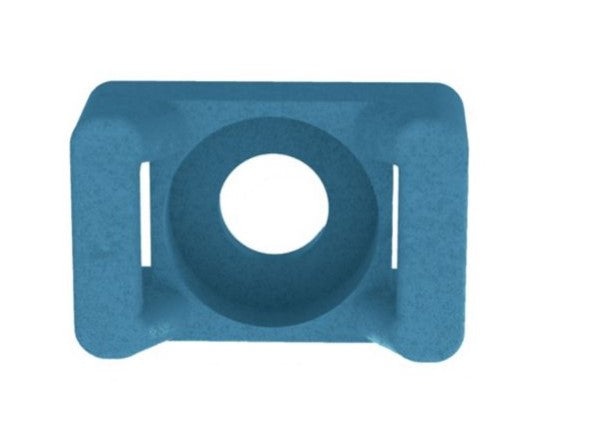

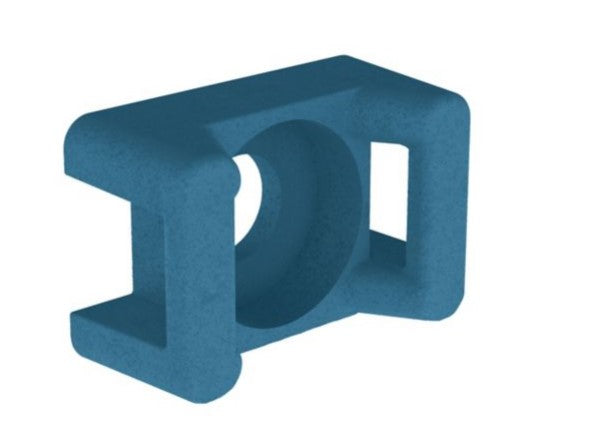

Panduit TM2S8-C96A Cable Tie Mounts are designed to help the food and beverage industries meet manufacturing safety standards. In addition to their metal detectability, their antimicrobial properties help to reduce the growth of harmful bacteria fungus and mold on the surface of the part only. These mounts are used with Miniature, Intermediate and Standard cross section cable ties. Use with #8 (M4) screws. Made of Metal Detectable Nylon 6.6, are blue in color, and come in packages of 100.
Specifications
Specifications
Panduit - TM2S8-C96A - Specifications
| Product Type | Cable Tie Mount |
|---|---|
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Color | Blue |
| Flammability Rating | UL94-HB |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 185 |
| Maximum Operating Temperature (°F) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #8 (M4) |
| Overall Length (In.) | 0.63 |
| Overall Length (mm) | 16 |
| Overall Width (In.) | 0.422 |
| Overall Width (mm) | 10.7 |
| Overall Height (In.) | 0.275 |
| Overall Height (mm) | 7 |
| Standards Met | RoHS Compliant |
Panduit - TM2S8-C96A - Package Information
| UPC | 61305682376 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0546 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.2728 |
Panduit - TM2S8-C96A - Video
| Panduit TM2S8-C96A Videos | Click to View |
|---|
