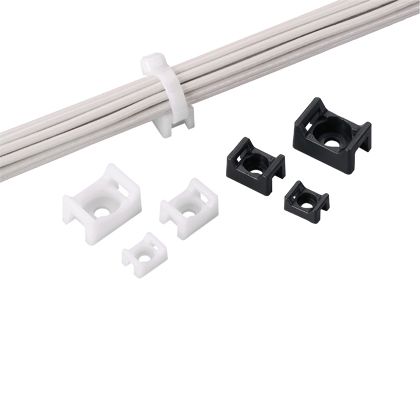

Panduit TM3A-C | Cable Tie Mount
Description
Description
Perfect for extreme environments, our winged push barb cable tie mount resist chemicals, radiation, and UV. Ideal for nuclear and chemical plants, they ensure secure cable management indoors or out.
The cable tie mount in natural color is applied with user-supplied adhesive and is 0.61" (15.5 mm) wide. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 100.
Panduit Cable Tie Mount, 2-Way Tie Entry, Adhesive Mount, 0.35 in Maximum Tie Width, 0.88 in Base Length, 0.61 in Base Width, Nylon 6.6/Polyamide, Natural
Panduit - TM3A-C - Features
- Solid flat bottom surface provides maximum holding area
- Polyamide (PA) insulation
- User supplied adhesive mounting
- For use with miniature, intermediate, standard heavy standard and light heavy cable ties
- Solid flat bottom surface provides maximum holding area
- For indoor use only
- Material: Nylon 6.6
Specifications
Specifications
Panduit - TM3A-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM3A-C |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Note | Customer to supply adhesive |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Solid Flat Bottom Surface Provides Maximum Holding Area in Indoor Use |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Mount Method | Adhesive |
| Overall Length (In.) | 0.87 |
| Overall Length (mm) | 22.2 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.8 |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.5 |
| UPC | 07498358120 |
Panduit - TM3A-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
