Brand: Panduit
|
SKU:
264599
Panduit TM3S25-C | TM3S25-C Cable Tie Mount, Natural, PA 6.6, 0.88x0.63", 1/4" Screw, PK100
Regular price
$80.93
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TM3S25-C | TM3S25-C Cable Tie Mount, Natural, PA 6.6, 0.88x...
Regular price
$80.93
Unit price
Description
Description
Panduit TM3S25-C | TM3S25-C Cable Tie Mount, Natural, PA 6.6, 0.88x0.63", 1/4" Screw, PK100

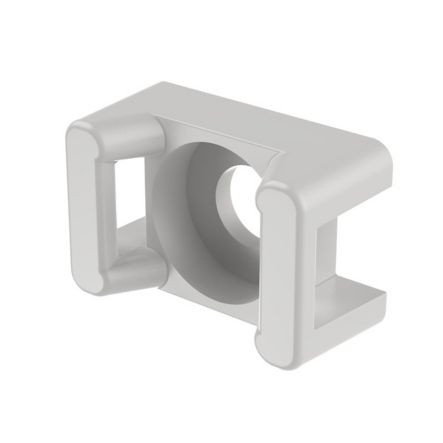

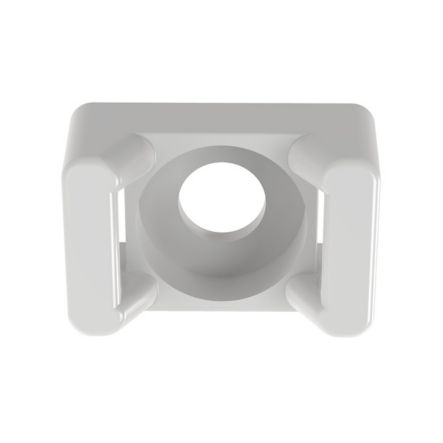

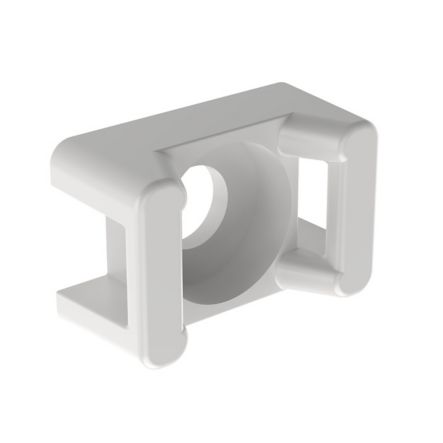

Panduit TM3S25-C Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #1/4 (M6) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Nylon 6.6. They are 0.63" (16 mm) wide, are natural in color and come in packages of 100.
Panduit - TM3S25-C - Features
- Unique cradle design provides maximum stability for the cable bundle
- Low profile design keeps bundle close to mounting surface where overhead space is limited
Specifications
Specifications
Panduit - TM3S25-C - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM3S25-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM3S25-C |
| Item Description | TM3S25-C Cable Tie Mount, Natural, PA 6.6, 0.88x0.63", 1/4" Screw, PK100 |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Overall Height (In.) | 0.379 |
| Overall Height (mm) | 9.6 |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.3 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 16 |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
Panduit - TM3S25-C - Package Information
| UPC | 07498358300 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0266 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1329 |
