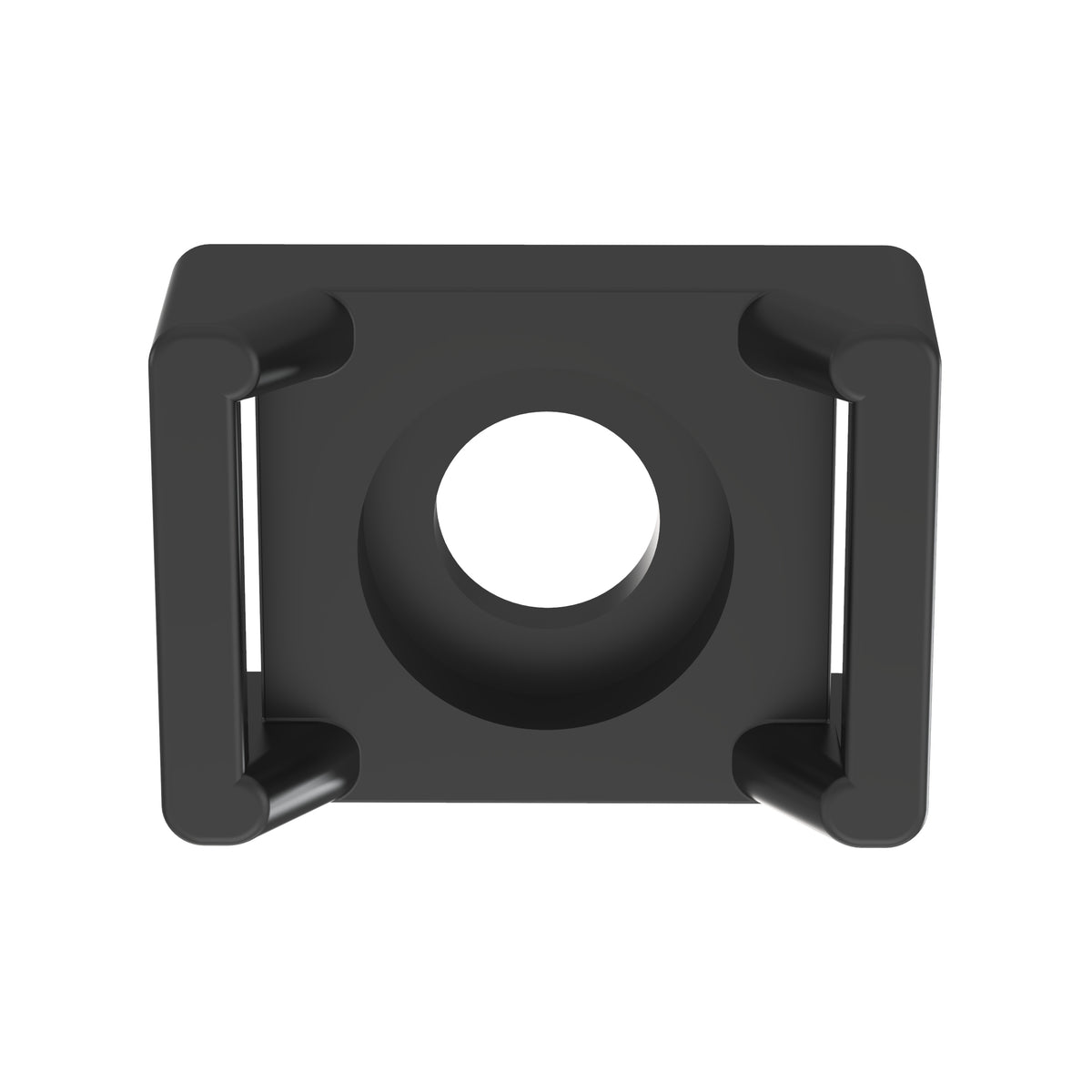

Panduit TM3S25-M0 | TM Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Threaded Mount, 0.3 in Maximum Tie Width, 0.88 in Base Length, 0.63 in Base Width, Nylon, Black
Perfect for extreme environments, our winged push barb cable tie mount resist chemicals, radiation, and UV. Ideal for nuclear and chemical plants, they ensure secure cable management indoors or out.
Panduit TM3S25-M0 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #1/4 (M6) screw. For outdoor use and are suitable for miniature , intermediate and standard cross-section cable ties. Made of Weather Resistant Nylon 6.6. They are 0.61" (15.5 mm) wide, are black in color and come in packages of 1000.
Panduit - TM3S25-M0 - Features
- Applications: Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
- Low profile design keeps bundle close to mounting surface
- Unique cradle design provides maximum stability for cable bundle
- Weather resistant
- For use with miniature, intermediate, standard and light-heavy cable ties
Specifications
Specifications
Panduit - TM3S25-M0 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie Mount |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Overall Length (In.) | 0.88 |
| Overall Length (mm) | 22.3 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 16 |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant, UL Listed:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
| UPC | 07498358302 |
Panduit - TM3S25-M0 - Package Information
| UPC | 07498358302 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.2520 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.2600 |
Panduit - TM3S25-M0 - Videos
| Panduit TM3S25-M0 Videos | Click to View |
|---|
