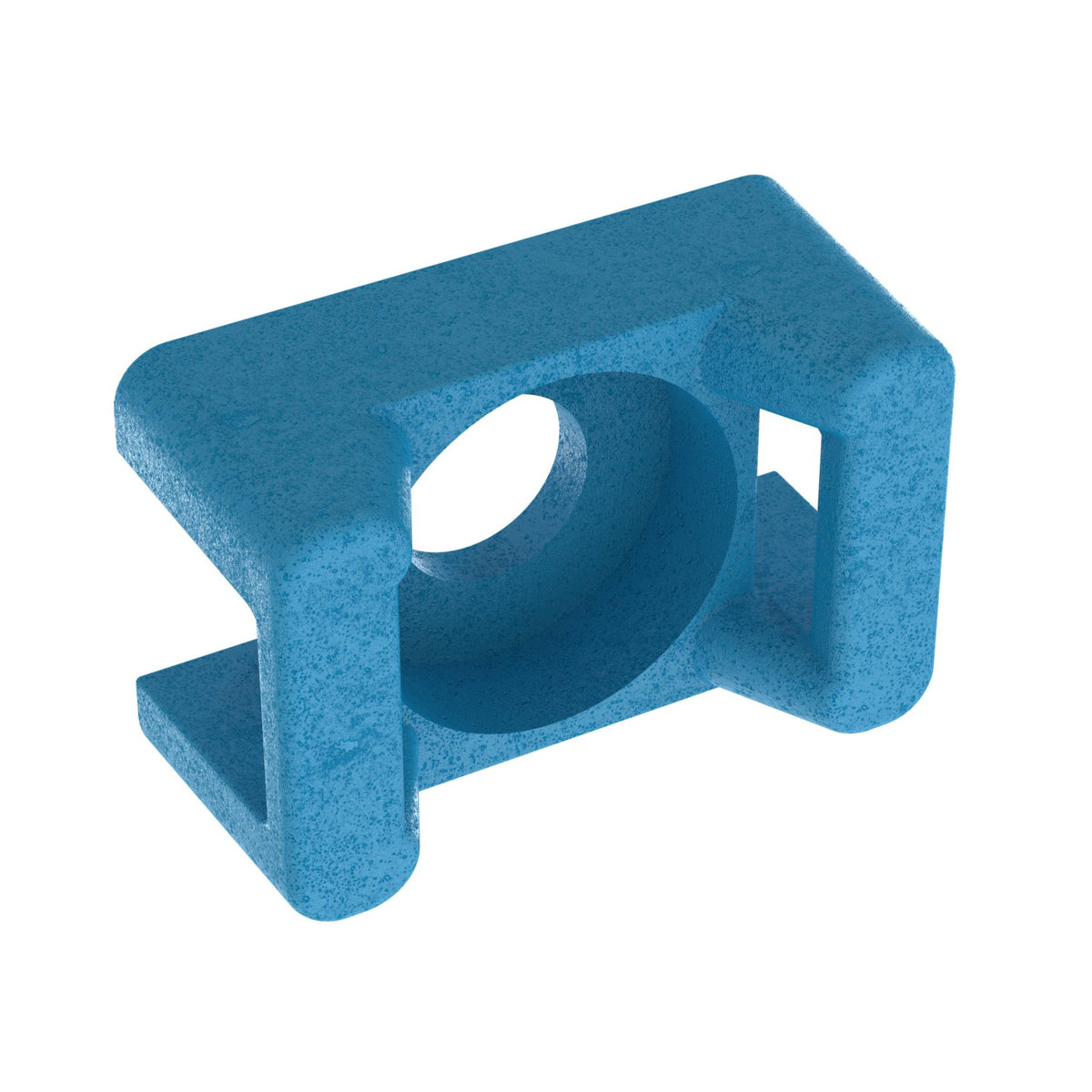

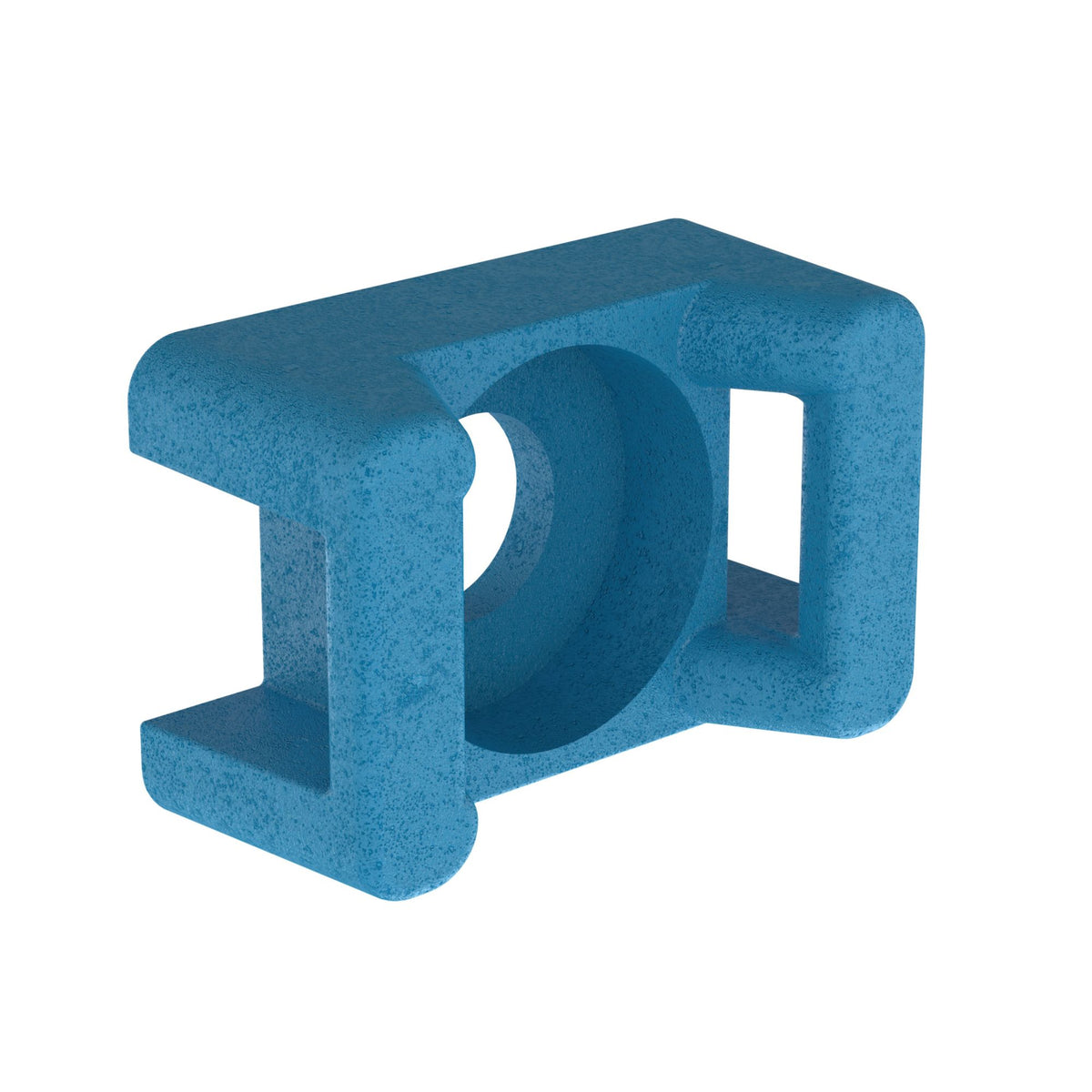

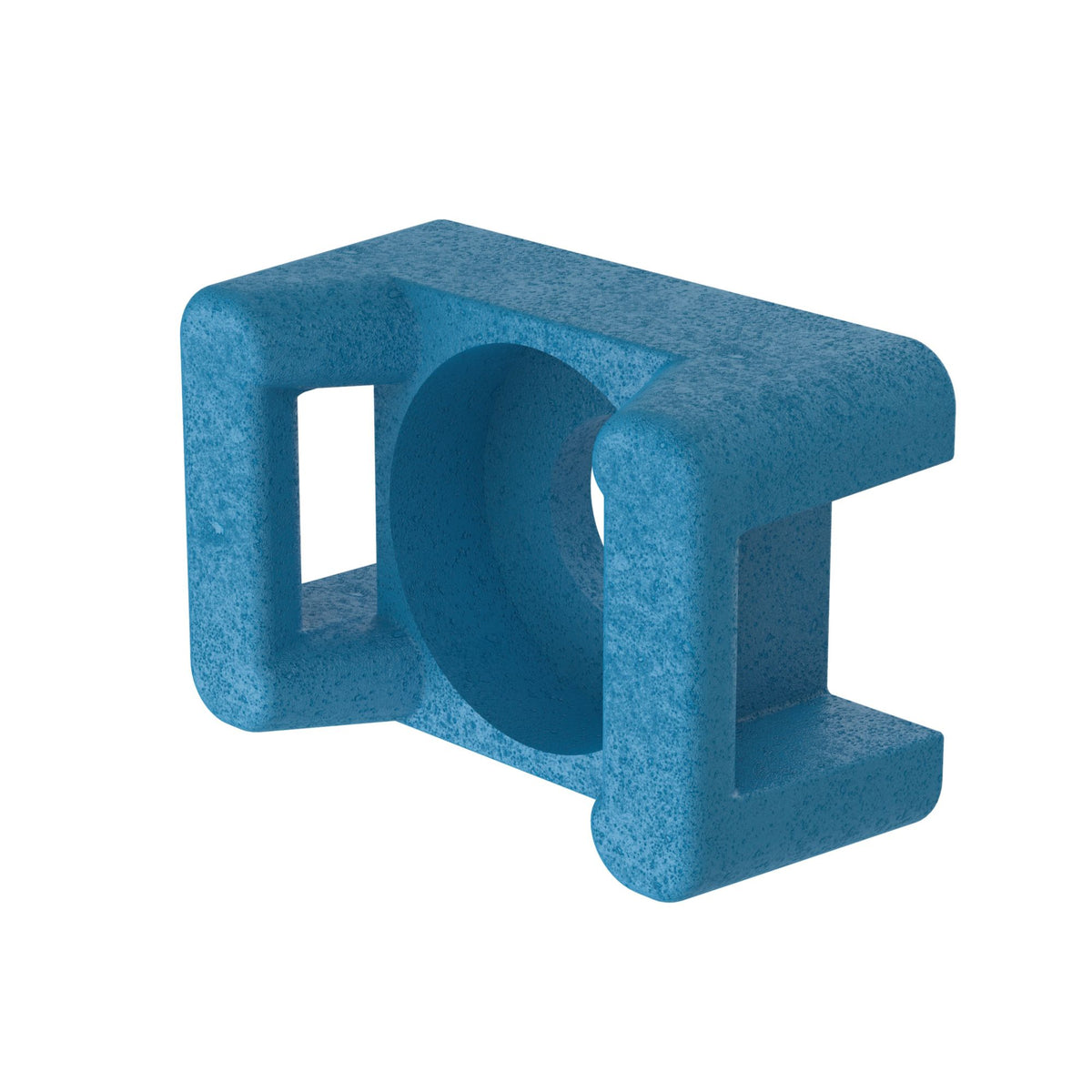

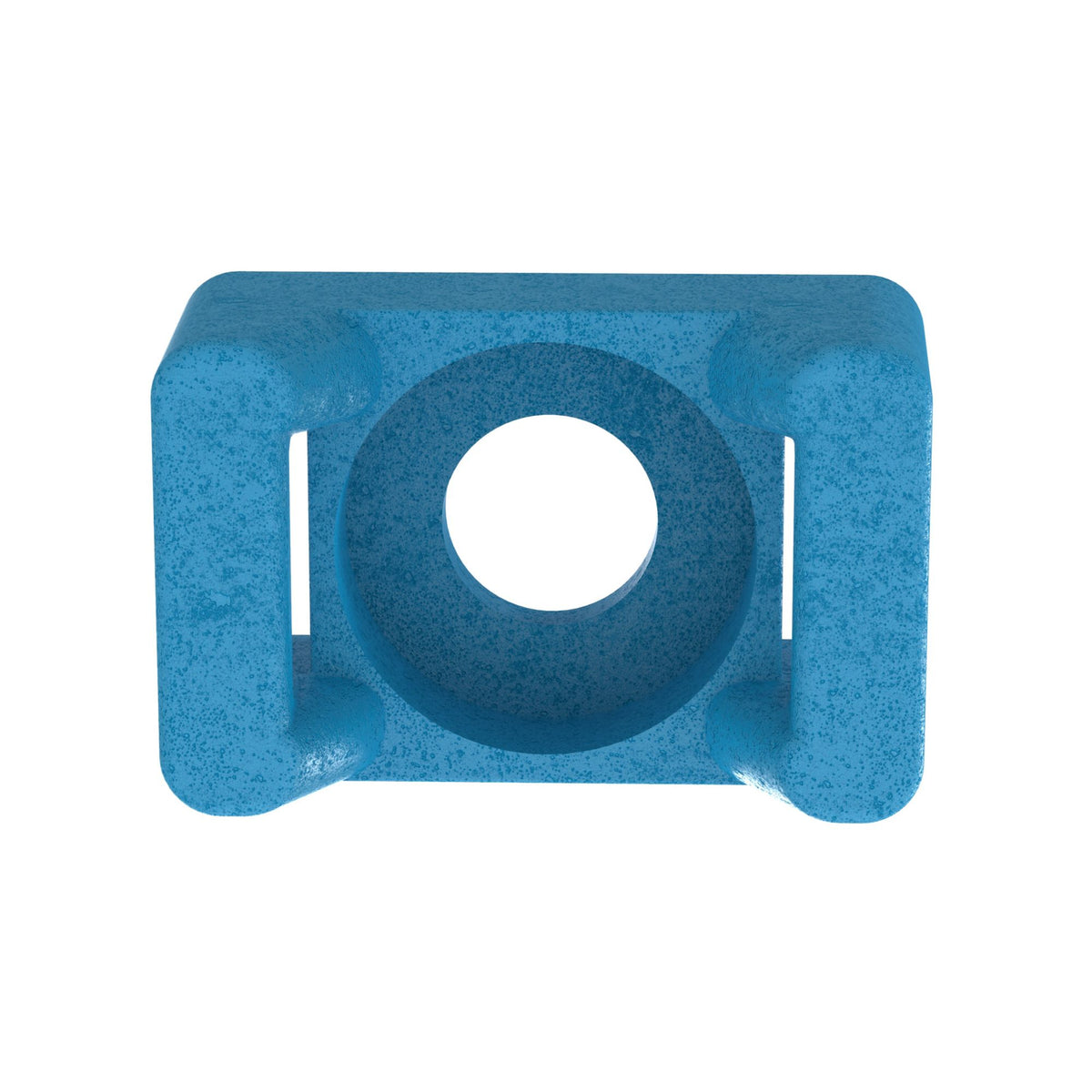

Panduit TM3S8-C76 | TM3S8-C76 Cable Tie Mount, Aqua, ETFE, 0.86x0.61", #8 Screw, PK100
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TM3S8-C76 | TM3S8-C76 Cable Tie Mount, Aqua, ETFE, 0.86x0.6...
Description
Description
Panduit TM3S8-C76 Cable Tie Mounts are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. These mounts can be used with Standard and L Light-Heavy cross section cable ties. Use with #8 (M4) screws. For indoor or outdoor use, made of Tefzel, are aqua in color, and come in packages of 100.
Panduit TM3S8-C76 Cable Tie Mount, #8 (m4) Screw, .86 (21.7mm) Length, .62 (15.5mm) Width, Tefzel, Aqua, Pack Of 100
Specifications
Specifications
Panduit - TM3S8-C76 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM3S8-C76 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM3S8-C76 |
| Item Description | TM3S8-C76 Cable Tie Mount, Aqua, ETFE, 0.86x0.61", #8 Screw, PK100 |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Aqua |
| Flammability Rating | UL94V-0 |
| Environment | Indoor |
| Material | TEFZEL |
| Maximum Operating Temperature (°C) | 170 |
| Maximum Operating Temperature (°F) | 338 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 (M4) |
| Overall Height (In.) | 0.375 |
| Overall Height (mm) | 9.5 |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.7 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 50.3 |
| Resistance Properties | Chemical, Radiation, UV and High Heat Resistant |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Standard, Light Heavy Cross-Section Ties |
| Type | CABLES TIES AND ACCESSORIES |
| UNSPSC Code | 39121703 |
Panduit - TM3S8-C76 - Package Information
| UPC | 07498358262 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0568 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2839 |
