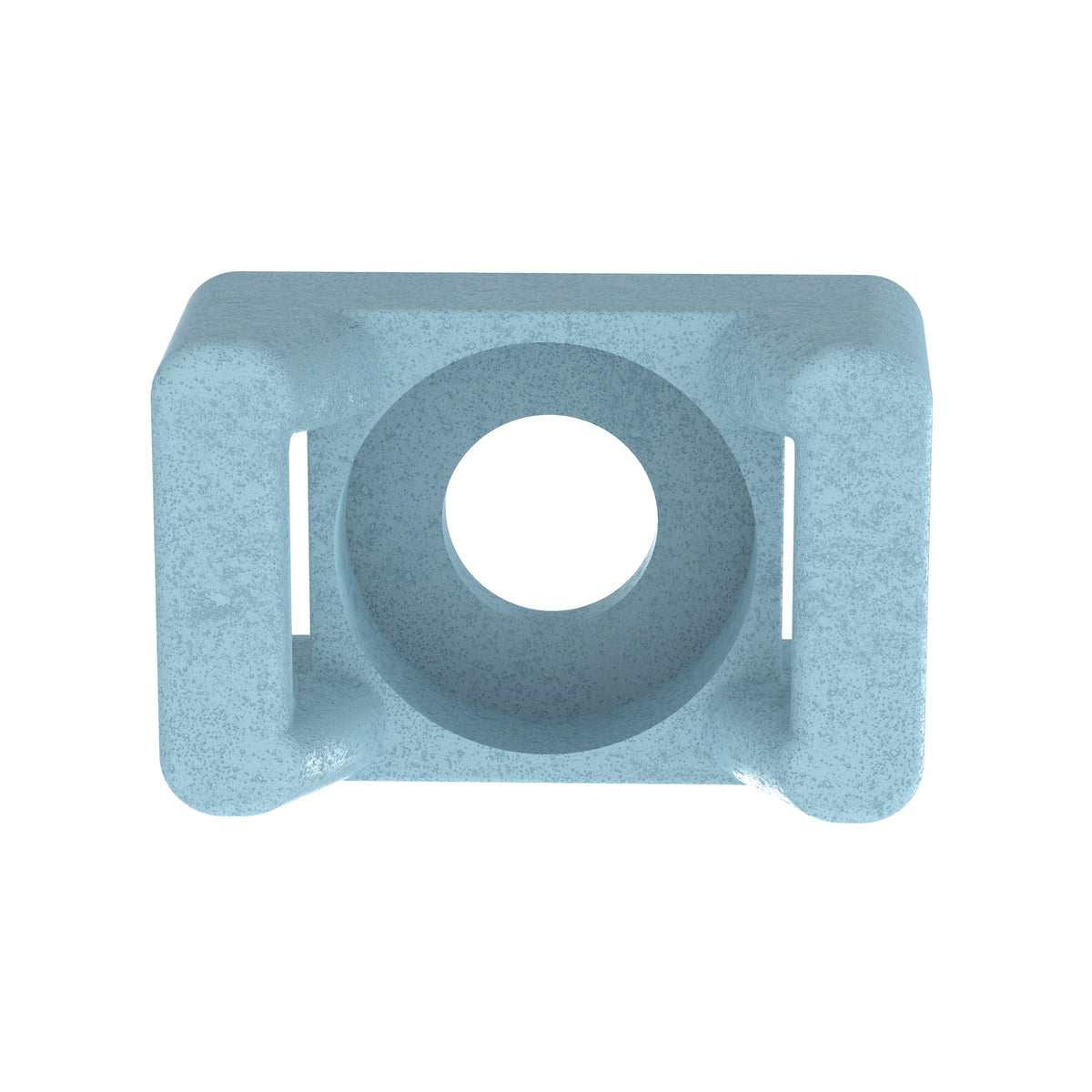

Panduit TM3S8-C86 | TM Cable Tie Mount
Description
Description
Panduit Pan-Ty Cable Tie Mount, Threaded Mounting, 0.3 in Maximum Tie Width, 0.61 in Base Length, 0.87 in Base Width, Nylon 6.6, Light Blue
Perfect for extreme environments, our winged push barb cable tie mount resist chemicals, radiation, and UV. Ideal for nuclear and chemical plants, they ensure secure cable management indoors or out.
Panduit TM3S8-C86 Cable Tie Mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. In addition to their metal detectability, their cradle design allows cable bundles to remain securely in place, close to the mounting surface.These mounts can be used with Standard and Light-Heavy cross section cable ties. Use with #8 (M4) screws.For indoor use, made of Metal Detectable Nylon 6.6, are light blue in color and come in packages of 100
Panduit - TM3S8-C86 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Applications: Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface
- Unique cradle design provides maximum stability for cable bundle
- Low profile design keeps bundle close to mounting surface
- Metal impregnated
- For use with standard and light heavy cable ties
Specifications
Specifications
Panduit - TM3S8-C86 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | RoHS Compliant |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie Mount |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Color | Light Blue |
| Flammability Rating | UL94-HB |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Metal-Impregnated |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | #8 |
| Overall Length (In.) | 0.87 |
| Overall Length (mm) | 22 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.5 |
| Standards Met | RoHS Compliant |
| UPC | 07498311513 |
Panduit - TM3S8-C86 - Package Information
| UPC | 07498311513 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0533 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2665 |
