Panduit TM3S8-C86A | TM3S8-C86A Cable Tie Mount
Regular price
$91.19
Unit price
Brand: Panduit
|
SKU:
10332027
Regular price
$91.19
Unit price
Description
Description

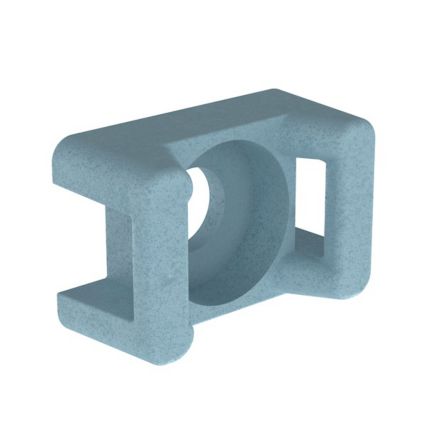

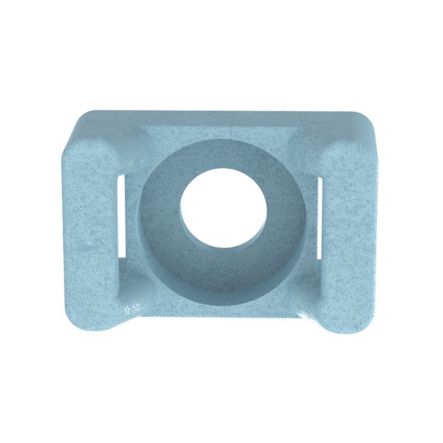

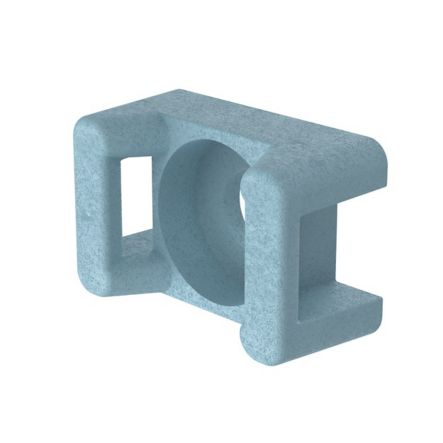

Panduit TM3S8-C86A | TM3S8-C86A Cable Tie Mount
Panduit TM3S8-C86A Cable Tie Mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. In addition to their Metal detectability, their Antimicrobial properties help to reduce the growth of harmful bacteria. These mounts can be used with Standard and Light-Heavy cross section cable ties. Use with #8 (M4) screws. Made of Metal Detectable Nylon 6.6, are light blue in color, and come in packages of 100.
Panduit TM3S8-C86A | Panduit Tm3S8-C86A Antimicrobial Met-Det Mount
Panduit - TM3S8-C86A - Features
- Panduit TM3S8-C86A Cable Tie Mounts are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. In addition to their Metal detectability, their Antimicrobial properties help to reduce the growth of harmful bacteria. These mounts can be used with Standard and Light-Heavy cross section cable ties. Use with #8 (M4) screws. Made of Metal Detectable Nylon 6.6, are light blue in color, and come in packages of 100.
- Technical Information: RoHS Compliant
Specifications
Specifications
Panduit - TM3S8-C86A - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM3S8-C86A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM3S8-C86A |
| Item Description | TM3S8-C86A Cable Tie Mount |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Blue |
| Flammability Rating | UL94-HB |
| Environment | Indoor |
| Material | Metal Impregnated Nylon 6.6 |
| Maximum Operating Temperature (°C) | 185 |
| Maximum Operating Temperature (°F) | 85 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 (M4) |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.4 |
| Overall Length (In.) | 0.87 |
| Overall Length (mm) | 22.1 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 15.5 |
| Standards Met | RoHS Compliant |
| Static Load Capacity (kg) | 0.287 |
| Static Load Capacity (lb) | 0.63 |
Panduit - TM3S8-C86A - Package Information
| UPC | 61305680057 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0546 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.2728 |
Panduit - TM3S8-C86A - Videos
| Video 1 | Click to View |
|---|
