Panduit TM3S8-M69 | TM3S8-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0...
Description
Description

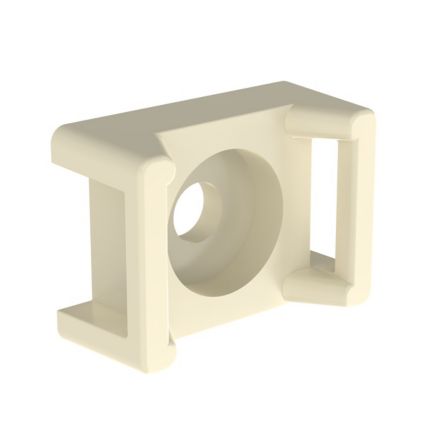

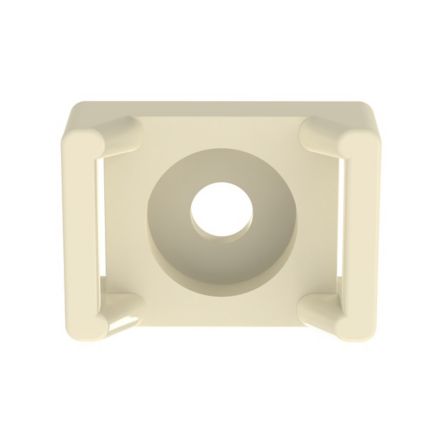

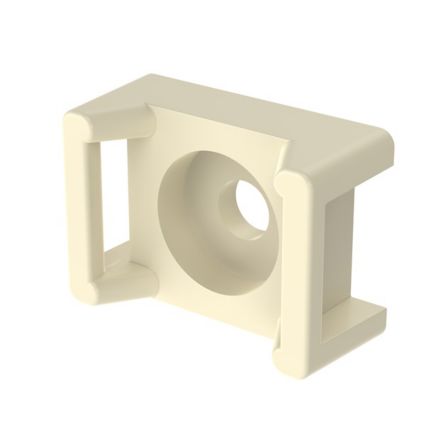

Panduit TM3S8-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For indoor use and are suitable for miniature, intermediate and standard cross-section cable ties. Made of Flame Retardant Nylon 6.6. They are 0.61" (15.5 mm) wide, are ivory in color and come in packages of 1000.
Panduit TM3S8-M69 | Panduit Tm3S8-M69 Screw Applied Mount, Flame Retardant
Panduit - TM3S8-M69 - Features
- Panduit TM3S8-M69 Screw Applied Cable Tie Mounts offer a through hole in the mount in which a screw or rivet can be secured, this offers maximum stability for cable bundles. Install with a #8 (M4) screw. For indoor use and are suitable for miniature, i ntermediate and standard cross-section cable ties. Made of Flame Retardant Nylon 6.6. They are 0.61" (15.5 mm) wide, are ivory in color and come in packages of 1000.
- Technical Information: CE Compliant, UL Recognized:E136577, RoHS Compliant
Specifications
Specifications
Panduit - TM3S8-M69 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TM3S8-M69 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TM3S8-M69 |
| Item Description | TM3S8-M69 Cable Tie Mount, Ivory, V-0 PA 6.6, 0.86x0.61", #8 Screw, PK1000 |
| Application | Unique Cradle Design Provides Maximum Stability for the Cable Bundle and Low Profile Design Keeps Bundle Close to Mounting Surface |
| Product Type | Cable Tie Mount |
| Color | Ivory |
| Environment | Indoor |
| Material | Flame Retardant Nylon 6.6 |
| Maximum Operating Temperature (°C) | 100 |
| Maximum Operating Temperature (°F) | 212 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 |
| Overall Height (In.) | 0.373 |
| Overall Height (mm) | 9.4 |
| Overall Length (In.) | 0.86 |
| Overall Length (mm) | 21.9 |
| Overall Width (In.) | 0.61 |
| Overall Width (mm) | 50.3 |
| Resistance Properties | Flame Retardant |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy Cross-Section Ties |
Panduit - TM3S8-M69 - Package Information
| UPC | 07498324805 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2555 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.2773 |
Panduit - TM3S8-M69 - Videos
| Video 1 | Click to View |
|---|
