Brand: Panduit
|
SKU:
TMEH-S10-C109
Panduit TMEH-S10-C109 | TMEH-S10-C109 Heavy Duty Cable Tie Mount, Green, PP, Screw, #10, 100PK
Regular price
$127.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TMEH-S10-C109 | TMEH-S10-C109 Heavy Duty Cable Tie Mount, G...
Regular price
$127.96
Unit price
Brand: Panduit
|
SKU:
TMEH-S10-C109
Regular price
$127.96
Unit price
Shipping calculated at checkout.
Description
Description

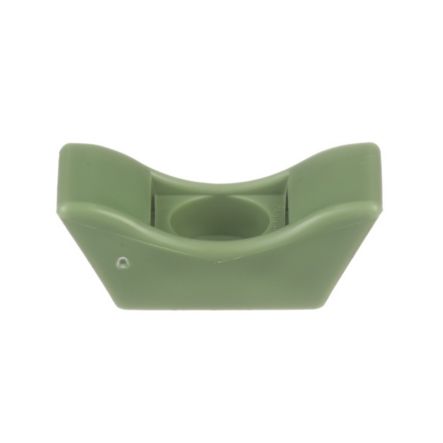

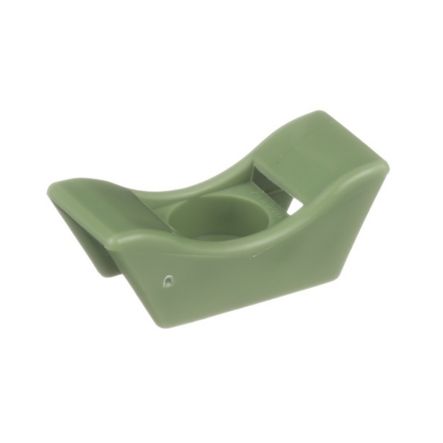

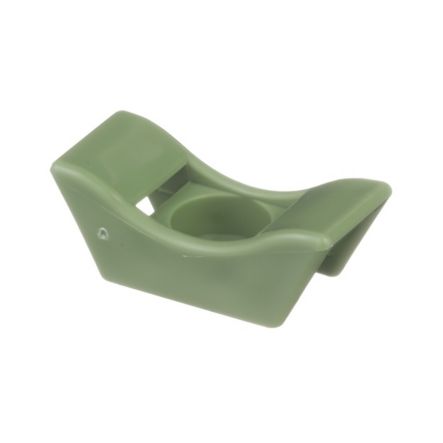

Panduit TMEH-S10-C109 | TMEH-S10-C109 Heavy Duty Cable Tie Mount, Green, PP, Screw, #10, 100PK
The extra heavy cable tie mount in green is applied with a #10 (M5) screw. It is made of polypropylene for indoor environments. It comes in packages of 100.
Panduit - TMEH-S10-C109 - Features
- Extra Heavy Cable Tie Mount
- Designed for use with Panduit extra-heavy cross section ties for mounting cable, large wire bundles, or tubular shapes.
- Unique cradle design provides maximum stability for cable bundle
- Route and support large diameter and heavy cable bundles
Specifications
Specifications
Panduit - TMEH-S10-C109 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TMEH-S10-C109 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TMEH-S10-C109 |
| Item Description | TMEH-S10-C109 Heavy Duty Cable Tie Mount, Green, PP, Screw, #10, 100PK |
| Application | Extra Heavy Cable Tie Mount Applied With a Screw for Outdoor Environment |
| Product Type | Cable Tie Mount |
| Color | Green |
| Flammability Rating | UL94-HB |
| Environment | Indoor |
| Material | Polypropylene |
| Maximum Operating Temperature (°C) | 110 |
| Maximum Operating Temperature (°F) | 230 |
| Minimum Loop Tensile Strength (N) | 400 |
| Minimum Loop Tensile Strength (lb) | 90 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #10 |
| Overall Height (In.) | 0.61 |
| Overall Height (mm) | 15.5 |
| Overall Length (In.) | 1.65 |
| Overall Length (mm) | 41.9 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 18.3 |
| Resistance Properties | Chemical Resistant |
| Standards Met | cULus 62275 Type 2,21 (E136577); CE Compliant, RoHS Compliant |
| For Use With | Intermediate, Standard, Light Heavy, Heavy, Extra Heavy Cross-Section Ties |
Panduit - TMEH-S10-C109 - Package Information
| UPC | 07498354064 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0839 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.4196 |
Panduit - TMEH-S10-C109 - Videos
| Video 1 | Click to View |
|---|
