Panduit TMEH-S25-X0 | Screw Applied Extra-Heavy Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Extra Heavy, Threaded Mount, 1.62 in Base Length, 0.72 in Base Width, Nylon, Black
Enhance your cable setup with the screw applied extra-heavy cable tie mount. Ideal for heavy-duty use, this mount ensures stability and durability for large wire bundles in any environment.

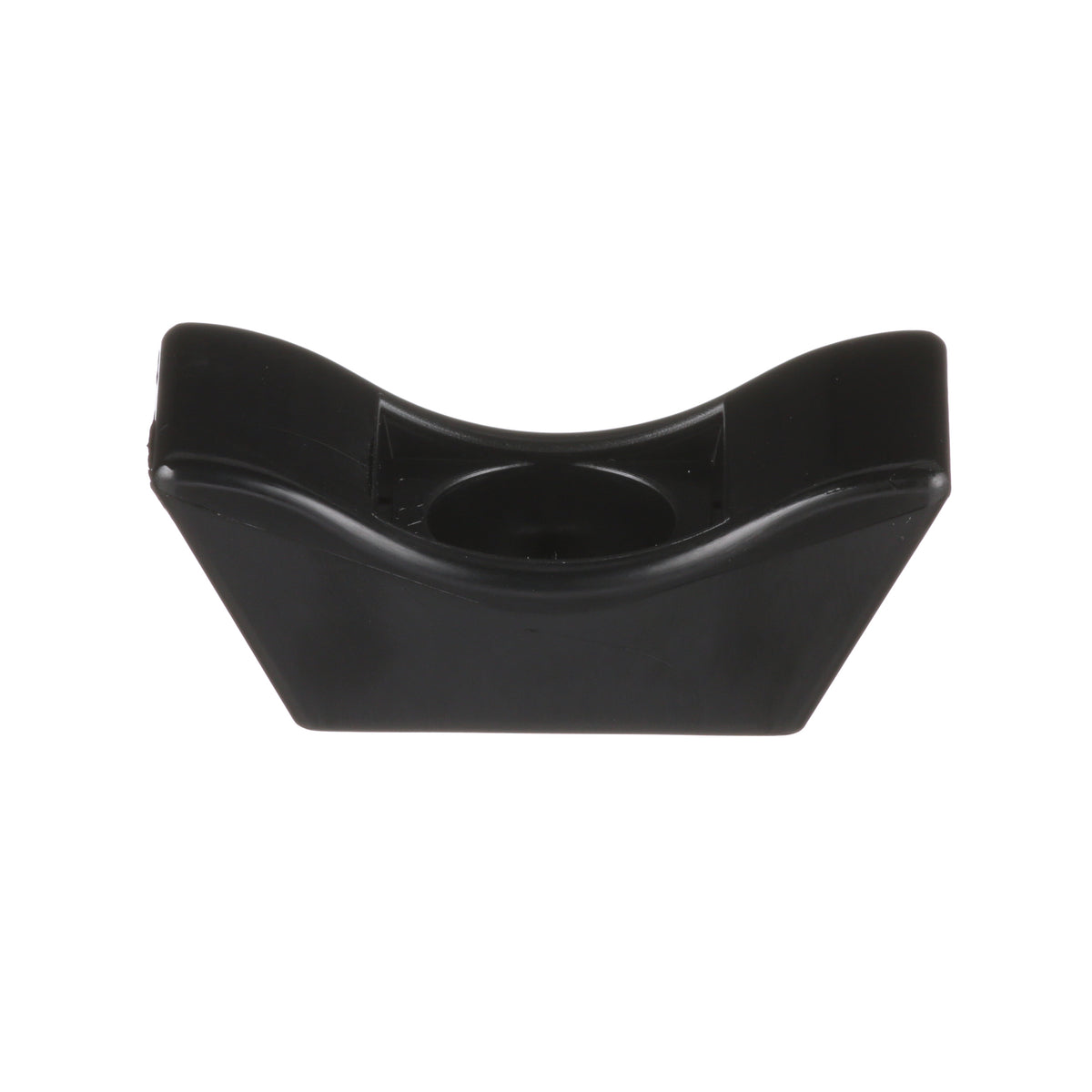

Panduit TMEH-S25-X0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for c able bundling, routing and the support of large diameter and heavy cable bundles. Install with #1/4 (M6) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 10.
Panduit - TMEH-S25-X0 - Features
- Applications: Extra Heavy Cable Tie Mount Applied With a Screw for Outdoor Environment
- Unique cradle design provides maximum stability for cable bundle
- Route and support large diameter and heavy cable bundles
- Weather resistant
- For use with intermediate, standard, heavy and extra heavy cable ties
Specifications
Specifications
Panduit - TMEH-S25-X0 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie Mount |
| Application | Extra Heavy Cable Tie Mount Applied With a Screw for Outdoor Environment |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | 1/4" |
| Overall Length (In.) | 1.62 |
| Overall Length (mm) | 41.1 |
| Overall Width (In.) | 0.72 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.61 |
| Overall Height (mm) | 15.5 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Intermediate, Standard, Heavy, Extra Heavy Cross-Section Ties |
| UPC | 07498311399 |
Panduit - TMEH-S25-X0 - Package Information
| UPC | 07498311399 |
|---|---|
| Standard Packaging Quantity | 10 |
| Standard Packaging Volume (cf) | 0.0332 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1662 |
Panduit - TMEH-S25-X0 - Videos
| Panduit TMEH-S25-X0 Videos | Click to View |
|---|
