Description
Description

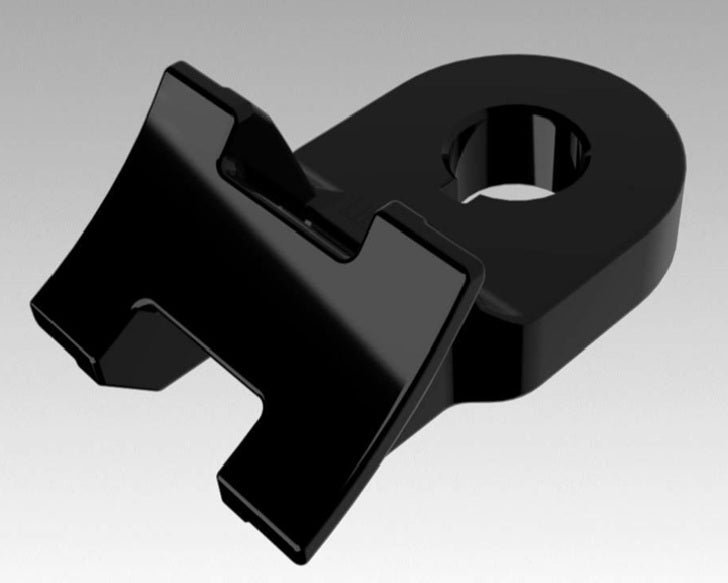

Panduit TMEH3S10-D350 | Medium-Duty Torque Mount, 3/8" Hole, Nylon 6.6, Black
Keep your cables secure with our torque mount. The retention tab ensures bolts stay in place while the weather-resistant Nylon 6.6 material offers durability in any environment.
Specifications
Specifications
Panduit - TMEH3S10-D350 - Specifications
| Note | Max. Bolt Torque Spec. is 40 lbf-ft |
|---|---|
| Product Type | Heavy Duty Torque Mount |
| Application | Medium Duty Torque Mount |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | 3/8" |
| Overall Length (In.) | 1.85 |
| Overall Length (mm) | 47 |
| Overall Width (In.) | 1.15 |
| Overall Width (mm) | 29.3 |
| Overall Height (In.) | 0.77 |
| Overall Height (mm) | 19.6 |
| Resistance Properties | Heat-Resistant, UV-Resistant, Weather-Resistant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy, Extra-Heavy Cross-Section Ties |
Panduit - TMEH3S10-D350 - Package Includes
| UPC | 61305675665 |
|---|---|
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.6202 |
Panduit - TMEH3S10-D350 - Videos
| Panduit TMEH3S10-D350 Video | Click to View |
|---|
