Panduit TMSTHS11-D0 | Stud-Mounted Cable Tie Mount
Description
Description
Stud mounts used with heavy cable ties shall provide an economical method of replacing cushion clamps, pipe hangers and other metal clamps used in heavy duty OEM and transportation equipment. The stud mount shall be hammered on or spun on existing weld studs, huck-spin bolts or exposed standard bolts. Optionally, the mount can be secured with Panduit Sta-Strap chassis/panel mount ties through the frame. The installed mount shall exceed the minimum loop tensile of the cable tie for which it is designed. The material shall be UV-resistant and meet the application temperature and the recognized static ground storage requirements for heavy vehicles. The material shall be impact-resistant and resist all common fuels, salt spray and washdown chemicals.
Panduit Cable Tie Mount, Weather-Resistant, Threaded Stud Mounting, 1.99 in Base Length, 1 in Base Width, Nylon 6.6, Black
Secure cables with our impact-modified, weather-resistant nylon stud-mounted cable tie mount. Designed for durability and stability in any environment it ensures neat and professional installations.
Panduit - TMSTHS11-D0 - Features
- Installs onto fastener such as bolts, Huck fastener and welded studs
- Fits a wide variety of common stud sizes and cable tie
- Offers multiple position configurations for flexibility in application
- Installs faster than metal clamp with threaded fastener
- Stands up to tough application environments with a weather-resistant nylon 6.6 material
- Provides a standoff from the frame rail to help prevent bundle abrasion during vehicle operation
- Stands up under vibration

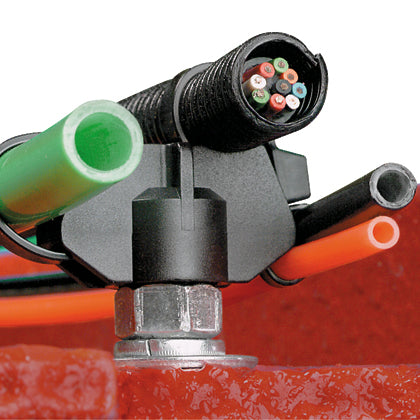

- Secures bundle with cable tie up to 4 discrete bundle per mount
- Remains in vehicle during service or repair, reattach bundle with new cable tie
- 1-piece design
- Two sided design
- Easily applied to bolts or studs with a light hammer blow or turning of the mount
- Designed for use with cable tie to route and secure cable bundle, air, water and hydraulic lines
- Made of impact modified weather-resistant nylon 6.6
- To route and secure heavy wire, cable, hydraulics and coolant hoses in the Oem, aerospace, marine, heavy truck and automotive markets
- For use with miniature, intermediate, standard heavy standard light heavy and heavy cable ties
Specifications
Specifications
Panduit - TMSTHS11-D0 - Specifications
| Product Type | Cable Tie Mount |
|---|---|
| Application | To Route and Secure Heavy Wire, Cable, Hydraulics and Coolant Hoses in the Oem, Aerospace, Marine, Heavy Truck and Automotive Markets. |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Stud Mount |
| Mounting Hole Thread Size | 7/16" |
| Overall Length (In.) | 1.95 |
| Overall Length (mm) | 49.5 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 27.9 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | Environmental Compliance 2000/53/EC ELV, 2002/95/EC RoHS |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| UPC | 07498331825 |
Panduit - TMSTHS11-D0 - Package Information
| UPC | 07498331825 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.8599 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - TMSTHS11-D0 - Videos
| Panduit TMSTHS11-D0 Videos | Click to View |
|---|
