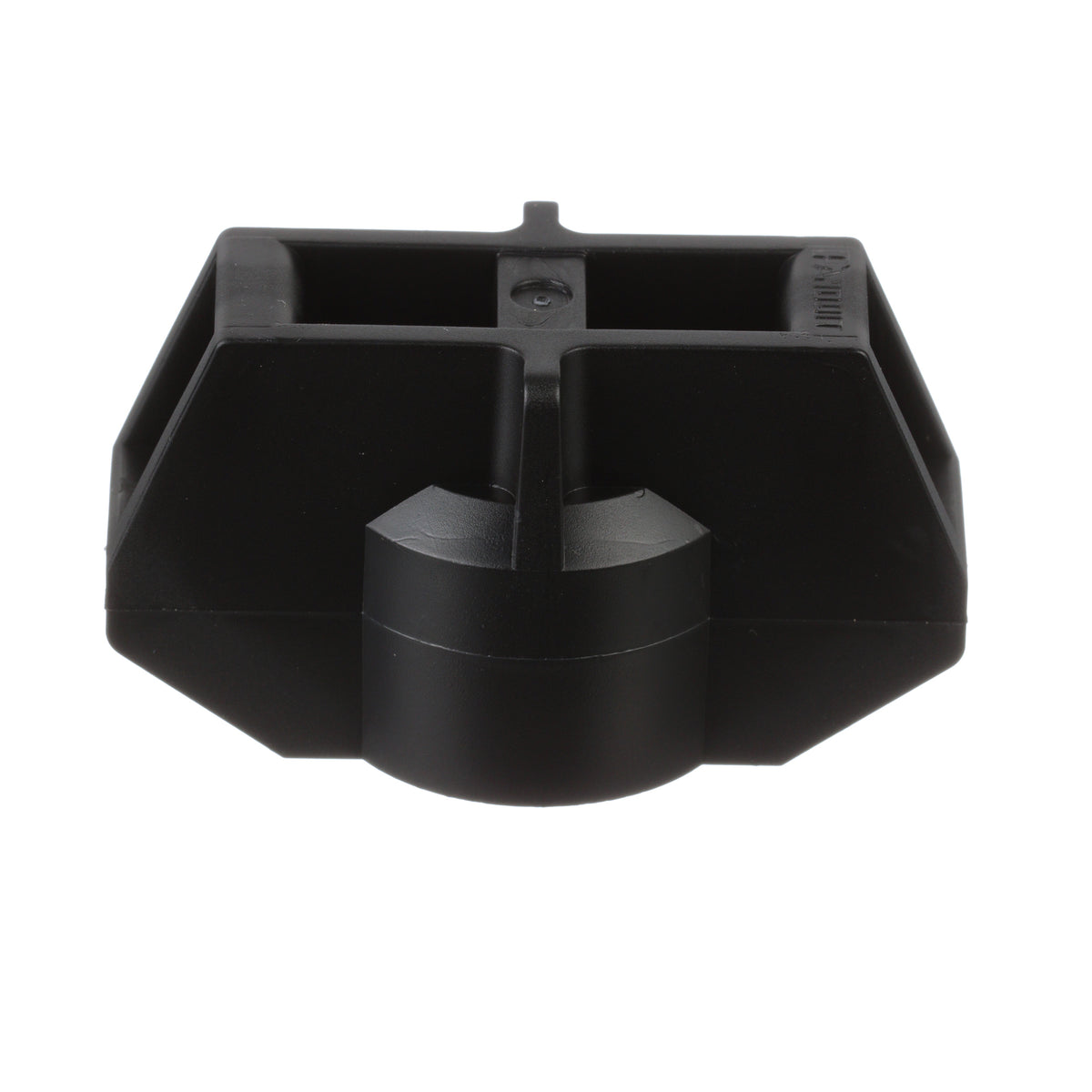

Panduit TMSTHS16-D0 | Stud-Mounted Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Threaded Stud Mounting, 0.35 in Maximum Tie Width, 1.99 in Base Length, 1 in Base Width, Nylon 6.6, Black
Secure cables with our impact-modified, weather-resistant nylon stud-mounted cable tie mount. Designed for durability and stability in any environment it ensures neat and professional installations.
Panduit TMSTHS16-D0 Stud Tie Mounts are designed for use with cable ties to route and secure cable bundles, air, water and hydraulic lines. They are made of Impact Modified Heat Stabilized Weather Resistant Nylon 6.6 and are ideal for heavy duty applic ations. Mounts can easily be installed using bolts or studs with a 5/8 (16mm) diameter. Suitable with miniature through heavy cable ties, for outdoor use, are black in color and come in packages of 500.
Panduit - TMSTHS16-D0 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Applications: To Route and Secure Heavy Wire, Cable, Hydraulics and Coolant Hoses in the Oem, Aerospace, Marine, Heavy Truck and Automotive Markets.
- Provides positive segregation of air, electrical and pneumatic lines along the length of the chassis with easy access for one or two cable ties, allowing for easier installation, inspection and service
- Provides up to 250 lb of hold down force, safely securing hoses, wire bundles and air lines
- Provides a longer service life, reducing maintenance and warranty Issues
- Meets the needs of verb and der automobilindustrie (VDA) and automotive industry action group (AIAG) compliant documentation, allowing parts to be listed in IMDS site ID
- Impact modified weather-resistant
- For use with miniature, intermediate, standard heavy standard light heavy and heavy cable ties
Specifications
Specifications
Panduit - TMSTHS16-D0 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | Environmental Compliance 2000/53/EC ELV, 2002/95/EC RoHS |
| Product Type | Cable Tie Mount |
| Application | To Route and Secure Heavy Wire, Cable, Hydraulics and Coolant Hoses in the Oem, Aerospace, Marine, Heavy Truck and Automotive Markets. |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Stud Mount |
| Mounting Hole Thread Size | 5/8" |
| Overall Length (In.) | 1.95 |
| Overall Length (mm) | 49.5 |
| Overall Width (In.) | 1 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 27.9 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Standards Met | Environmental Compliance 2000/53/EC ELV, 2002/95/EC RoHS |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| UPC | 07498361483 |
Panduit - TMSTHS16-D0 - Package Information
| UPC | 07498361483 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.8972 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - TMSTHS16-D0 - Videos
| Panduit TMSTHS16-D0 Videos | Click to View |
|---|
