Brand: Panduit
|
SKU:
10153416
Panduit TNC75X75LG2 | Panduct TNC75X75LG2 Base/Cover
Regular price
$247.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TNC75X75LG2 | Panduct TNC75X75LG2 Base/Cover
Regular price
$247.84
Unit price
Description
Description

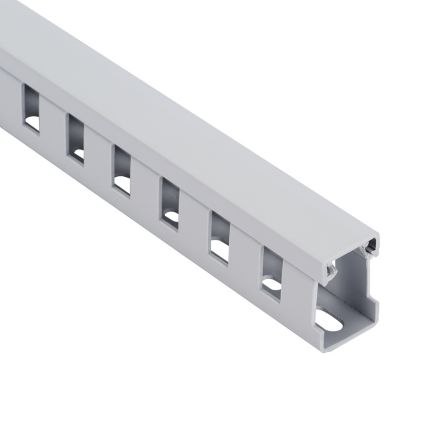

Panduit TNC75X75LG2 | Panduct TNC75X75LG2 Base/Cover
Type TNC slotted wall wiring duct, 74.6mm W x 72.4mm H, 6.6' length, polyphenylene ether + high impact polystyrene (PPE + HIPS), light gray, base and cover packaged together.
Panduit PANDUCT - Cable raceway slotted duct - 6.6 ft - light gray - TNC75X75LG2.
Specifications
Specifications
Panduit - TNC75X75LG2 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - TNC75X75LG2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TNC75X75LG2 |
| Item Description | Panduct TNC75X75LG2 Base/Cover |
| Application | (1) Type TNC Wiring Duct Routes, Protects, and Manages Electrical and Communication Cabling in Control Panels and Wire Routing Applications that Require Enhanced Material Performance for Fire Safety such as in Light Rail and Transit Systems, Commuter Buses, Data Centers, Offshore Oil and Gas Platforms, and other Environments |
| Product Type | Base/Cover |
| Color | Light Gray |
| Cover Part Number | TNC75LG2 (included) |
| Flammability Rating | UL94 V-0 |
| Includes | Base and Cover |
| Standards Met | RoHS Compliant, UL Recognized |
| Material | Polyphenylene Ether + High Impact Polystyrene (PPE + HIPS) |
| Mount Method | DIN Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Slotted Wall Wiring Duct |
| Wiring Duct Type | TNC |
| Overall Height (In.) | 2.86 |
| Overall Height (mm) | 72.6 |
| Overall Length (ft.) | 6.6 |
| Overall Length (m) | 2 |
| Overall Width (In.) | 2.94 |
| Overall Width (mm) | 74.7 |
| Slot Width (In.) | 0.39 |
| Slot Width (mm) | 10 |
| Sub Brand | Panduct |
| Part Features | Metric Low-Smoke/Halogen-Free Wide finger and slot design provides greater rigidity and allows use with a wide range of wire and bundle sizes. Upper and lower scorelines allows easy finger and sidewall section removals. The halogen-free material is environmentally safe and will not release corrosive or toxic gases. Base and Cover Packaged together. |
Panduit - TNC75X75LG2 - Package Information
| UPC | 07498359776 |
|---|---|
| Standard Package Quantity | 2 |
| Standard Package Volume (cf) | 0.3452 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 1.7258 |
