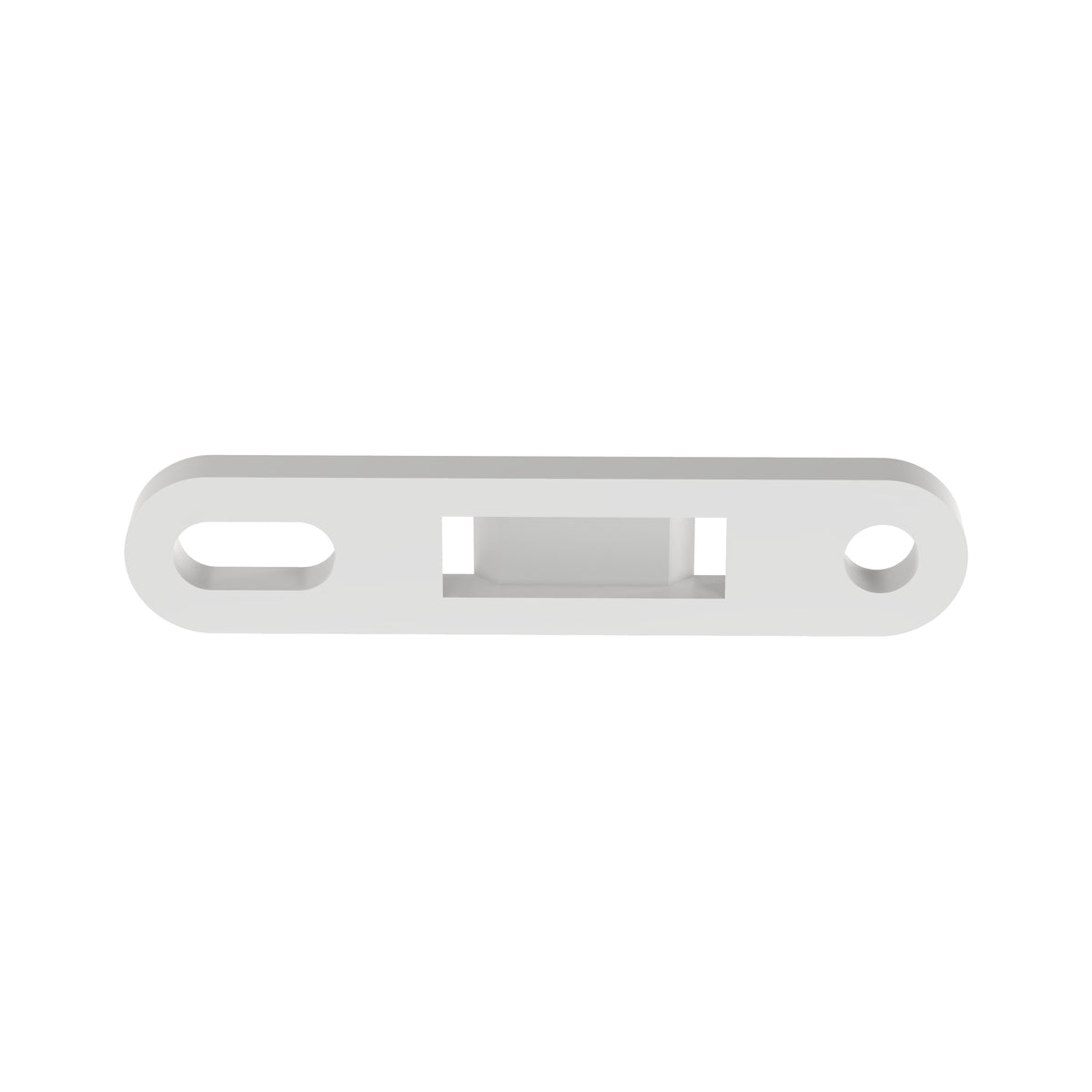

Panduit TP4H-D | TP Cable Tie Mount
Description
Description
Panduit Cable Tie Mount, Threaded Mounting, 0.27 in Maximum Tie Width, 3.08 in Base Length, 0.62 in Base Width, Nylon 6.6, Natural
Maximize your space with our low-profile TP cable tie mount. Great for tight spaces, it keeps bundles secure and close to the surface. It's ideal for indoor use with various fastener spaces.
Panduit TP4H-D Cable Tie Plates have a low profile design to keep bundles close to the mounting surface and their slotted mounting holes accommodate various fastener spacing. They require a 1/4 (M6) screw for application and are suitable for use with m iniature through heavy cable ties. For use in indoor environments and are military spec grade. Made of Nylon 6.6. are natural in color and come in packages of 500.
Panduit - TP4H-D - Features
- Applications: Cable Tie Plate Used with Miniature, Intermediate, Standard, Heavy-Standard, Light-Heavy, and Heavy Cable Ties.
- Polyamide (PA) insulation
- For use with miniature, intermediate, standard heavy standard and light heavy cable ties
Specifications
Specifications
Panduit - TP4H-D - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| Product Type | Cable Tie Mount |
| Application | Cable Tie Plate Used with Miniature, Intermediate, Standard, Heavy-Standard, Light-Heavy, and Heavy Cable Ties. |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Thread Size | M6 |
| Overall Length (In.) | 3.08 |
| Overall Length (mm) | 78.2 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 50.3 |
| Overall Height (In.) | 0.2 |
| Overall Height (mm) | 5.2 |
| Standards Met | CE Compliant, UL Recognized:E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard, Light Heavy, Heavy Cross-Section Ties |
| UPC | 07498358341 |
Panduit - TP4H-D - Package Information
| UPC | 07498358341 |
|---|---|
| Standard Packaging Quantity | 500 |
| Standard Packaging Volume (cf) | 0.2640 |
| Standard Ctn. Quantity | 2500 |
| Standard Ctn. Volume (cf) | 1.3201 |
Panduit - TP4H-D - Videos
| Panduit TP4H-D Videos | Click to View |
|---|
