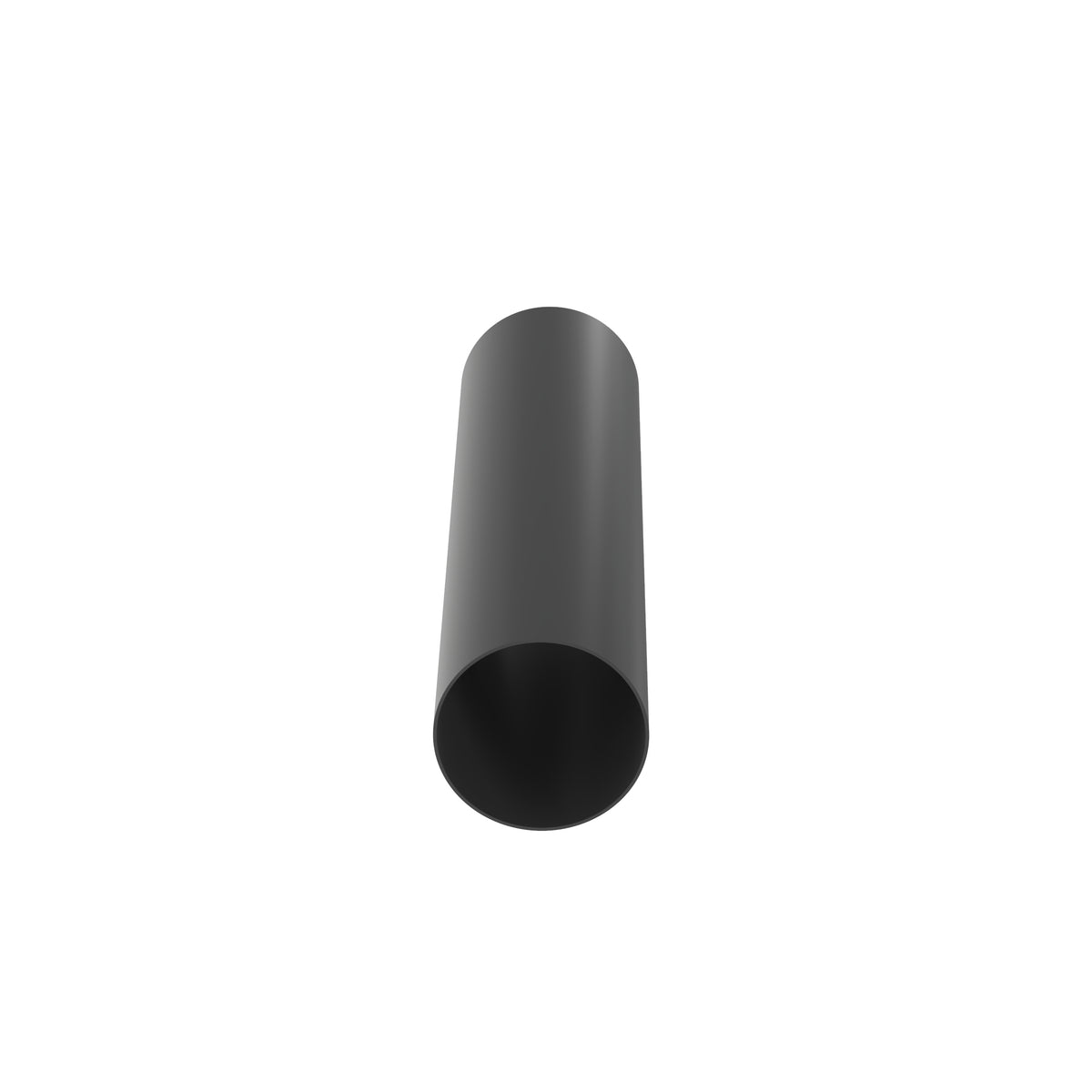

Panduit TV105-1.0C20Y | Non-Shrink Tubing | UPC - 07498345426
Regular price
$254.30
Unit price
Description
Description
Panduit Non-Shrink Tubing, Series: TV105, 600 VAC, 1.036 in Inner Dia Expanded, 1 in Inner Dia Recovered, 0.035 in Wall Thickness Recovered, 100 ft Length, -4 to 221 deg F, PVC, Black
Features + Benefits
- Provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment
- All purpose flexible and non-shrinkable
- Resistant to heat and moisture
Panduit Panduit TV105-1.0C20Y | Non-Shrink Tubing | UPC - 07498345426 Key Specs
| Note | TV105-1.0C20Y replaces TV105-1.0L20Y |
| Product Type | Non-Shrink Tubing |
| Color | Black |
| Inside Diameter (In.) | 1.04 |
| Inside Diameter (mm) | 26.3 |
| Material | Polyvinyl Chloride |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 600 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Nominal Diameter (In.) | 1 |
| Nominal Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Resistance Properties | Oil-Resistant |
| Standards Met | CSA 75192, UL224 VW-1, MIL-I-631, RoHS Complaint |
| Wall Thickness (In.) | 0.04 |
| Wall Thickness (mm) | 0.9 |
| Application | 1) Provides Insulation and Protection for Lead Wires, Wire Harness Assemblies, Soldered Joints and Components in Electrical and Electronic Equipment, 2) All Purpose Flexible and Non-Shrinkable |
Panduit Panduit TV105-1.0C20Y | Non-Shrink Tubing | UPC - 07498345426 Data Sheets
| Part Drawings | Part Drawing - PDF - G03597BZ_DC_GB0239LV_00C | Download and View |
| Catalog Cut Sheets | Non-Shrink PVC Tubing Catalog Cut Sheet HSCC1 | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit Panduit TV105-1.0C20Y | Non-Shrink Tubing | UPC - 07498345426 Environmental Information
| Panduit's RoHS Statement | Download and View |
