Brand: Panduit
|
SKU:
PAN-TV105-3TL20

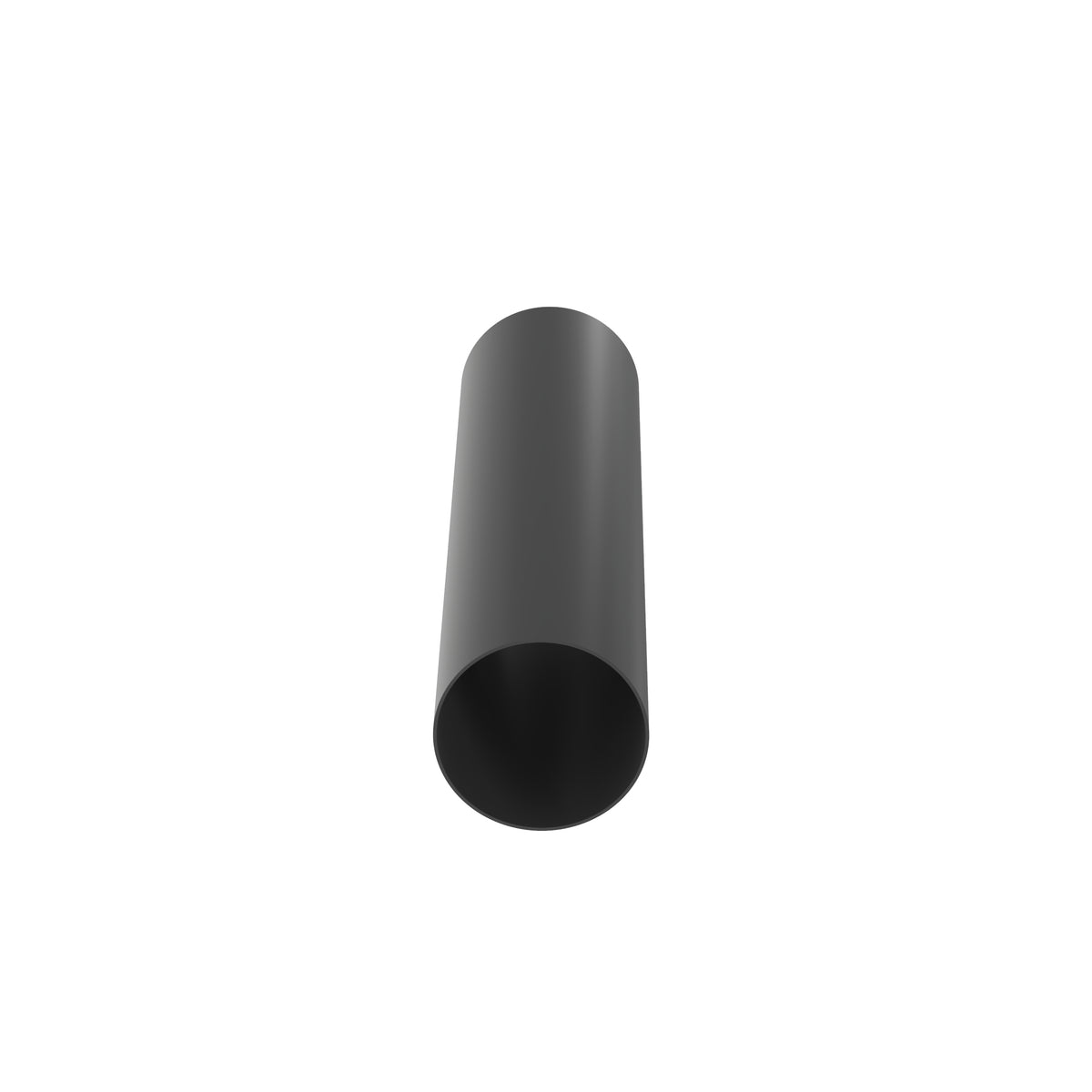

Panduit TV105-3M20Y | Non-Shrink Tubing | UPC - 07498345243
Regular price
$239.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TV105-3M20Y | Non-Shrink Tubing | UPC - 07498345243
Regular price
$239.04
Unit price
Brand: Panduit
|
SKU:
PAN-TV105-3TL20
Regular price
$239.04
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Non-Shrink Tubing, Series: TV105, 300 VAC, 0.249 in Inner Dia Expanded, 0.23 in Inner Dia Recovered, 0.02 in Wall Thickness Recovered, 1000 ft Length, -4 to 221 deg F, PVC, Black
Features + Benefits
- Provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment
- All purpose flexible and non-shrinkable
- Resistant to heat and moisture
Panduit TV105-3M20Y | Non-Shrink Tubing | UPC - 07498345243 Key Specs
| Note | TV105-3M20Y replaces TV105-4TL20Y |
| Product Type | Non-Shrink Tubing |
| Color | Black |
| Inside Diameter (In.) | 0.25 |
| Inside Diameter (mm) | 6.3 |
| Material | Polyvinyl Chloride |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 300 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Nominal Diameter (AWG) | 3 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Resistance Properties | Oil-Resistant |
| Standards Met | CSA 75192, UL224 VW-1, MIL-I-631, RoHS Complaint |
| Wall Thickness (In.) | 0.02 |
| Wall Thickness (mm) | 0.5 |
| Application | 1) Provides Insulation and Protection for Lead Wires, Wire Harness Assemblies, Soldered Joints and Components in Electrical and Electronic Equipment, 2) All Purpose Flexible and Non-Shrinkable |
| Part Features | Provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment |
Panduit TV105-3M20Y | Non-Shrink Tubing | UPC - 07498345243 Data Sheets
| Part Drawings | Part Drawing - PDF - G03597BZ_DC_GB0239LV_00C | Download and View |
| Catalog Cut Sheets | Non-Shrink PVC Tubing Catalog Cut Sheet HSCC1 | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
Panduit TV105-3M20Y | Non-Shrink Tubing | UPC - 07498345243 Environmental Information
| Panduit's RoHS Statement | Download and View |
