Panduit TV105-6M20Y | Tv105-6M20Y Non-Shrink Tubing, Black, Pvc, 6 ...
Description
Description

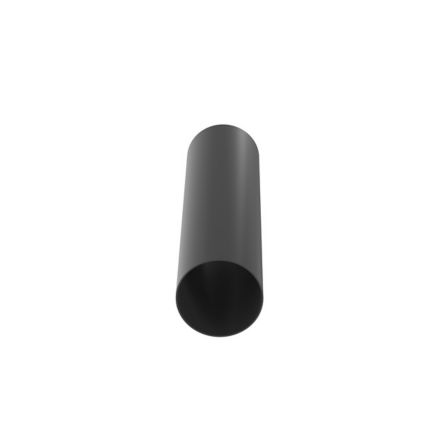

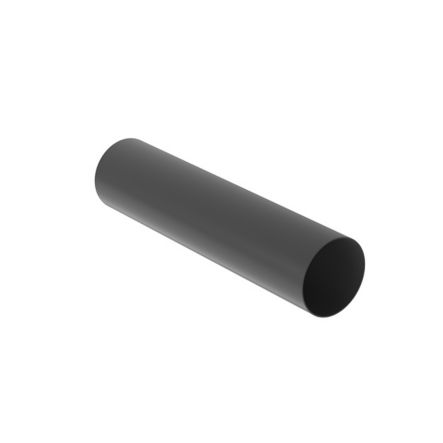

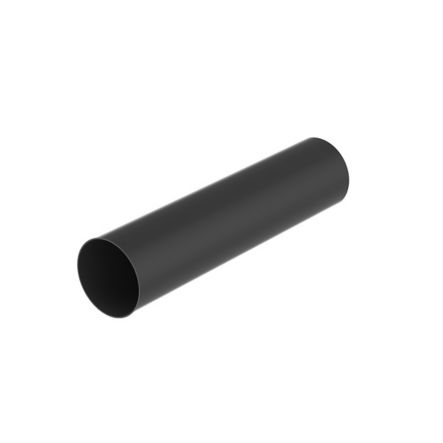

The TV105-6M20Y PVC Non-Shrink Tubing provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment. All-purpose flexible, and non-shrinkable. Resistant to heat and moisture. Flammability: Meets UL 224 VW-1. Voltage rating: 300 V. Material: PVC. Continuous use temperature range: -4°F – 221°F (-20°C – 105°C). Nominal Size: 6 AWG; 0.17" (4.52 mm) x 1000 ft. (304.8 mm) Color Black. 1 per package.
Panduit - TV105-6M20Y - Features
- PVC Non-Shrink Tubing, 105C rated
- Provides insulation and protection for lead wires wire harness assemblies soldered joints and components in electrical and electronic equipment
- Material: Polyvinyl chloride (PVC)
- Voltage Rating: 300V and 600V
- All purpose flexible non-shrinkable
- Resistant to heat and moisture Applicable Specifications:
- UL224 VW-1
- CSA C22.2 No. 198.1 (OFT)
- ASTM D-922 Grade CFR
- MIL-I-631 Type F, Form U, Grade C- Class 1 Category 1
Specifications
Specifications
Panduit - TV105-6M20Y - Product Categories
- Wire Routing, Management & Protection
- Non Shrink Tubing
Panduit - TV105-6M20Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TV105-6M20Y |
| Item Description | Tv105-6M20Y Non-Shrink Tubing, Black, Pvc, 6 Awg, Pk1 |
| Product Type | Non-Shrink Tubing |
| Color | Black |
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.5 |
| Material | Polyvinyl Chloride |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Voltage (V) | 300 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Nominal Diameter (AWG) | 6 |
| Nominal Diameter (In.) | 0.178 |
| Nominal Diameter (mm) | 4.5 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Resistance Properties | Oil-Resistant |
| Standards Met | CSA 75192, UL224 VW-1, MIL-I-631, RoHS Compliant |
| Wall Thickness (In.) | 0.02 |
| Wall Thickness (mm) | 0.5 |
| Application | 1) Provides Insulation and Protection for Lead Wires, Wire Harness Assemblies, Soldered Joints and Components in Electrical and Electronic Equipment, 2) All Purpose Flexible and Non-Shrinkable |
| Part Features | Provides insulation and protection for lead wires, wire harness assemblies, soldered joints and components in electrical and electronic equipment |
Panduit - TV105-6M20Y - Package Information
| UPC | 07498345241 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.1712 |
| Standard Ctn. Quantity | 2 |
| Standard Ctn. Volume (cf) | 2.3424 |
