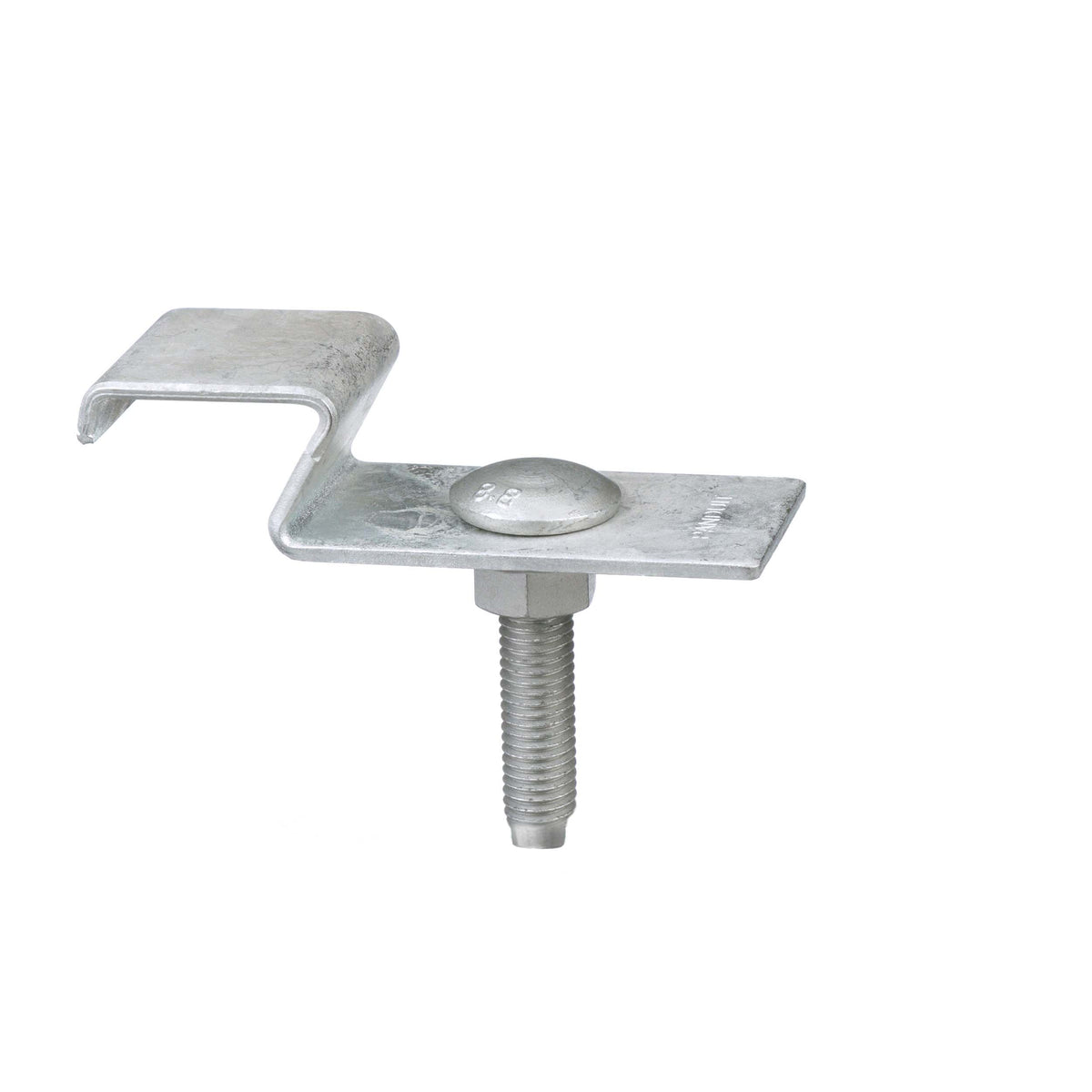

Panduit UCUC1-VC | Metal Uniclip Brackets | UPC - 61305675975

The UCUC1-VC Uniclip bracket is designed for use with metal locking strap and buckle strap cable cleats to allow cable cleat installation on slotted cable tray. The bracket aids to eliminate diagonal installations and high resistance to lateral and axial movement. The bracket is compatible with U-channel type cable ladder rungs in galvanized steel, stainless steel, and aluminum constructions. Features galvanized commercial steel and includes bracket, carriage bolt, and serrated flange nut.

---

Panduit Panduit UCUC1-VC | Metal Uniclip Brackets | UPC - 61305675975 Key Specs

Note	This bracket is intended for use with U-channel type ladder rungs in galvanized steel, stainless steel, and aluminum constructions.
Product Type	Metal Uniclip Brackets
Color	Natural
Environment	Indoor/Outdoor
For Use With	Stainless Steel Buckle Strap and Locking Strap Cable Cleats
Material	COMMERCIAL STEEL/GALVANIZED
Overall Height (In.)	0.82
Overall Height (mm)	20.9
Overall Length (In.)	3.49
Overall Length (mm)	88.7
Overall Width (In.)	1.25
Overall Width (mm)	31.7
