Panduit UGB2/0-414-18 | StructuredGround UGB2/0-414-18 Universal Gr...
Description
Description

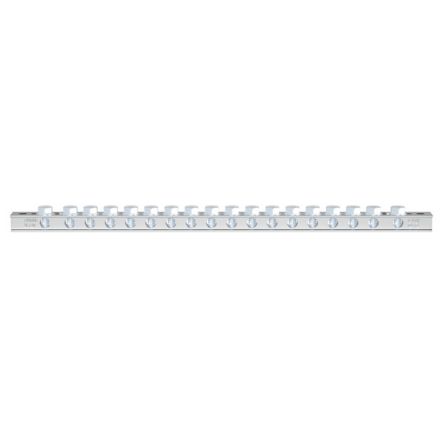

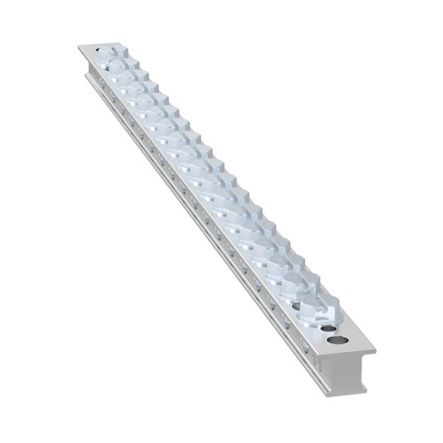

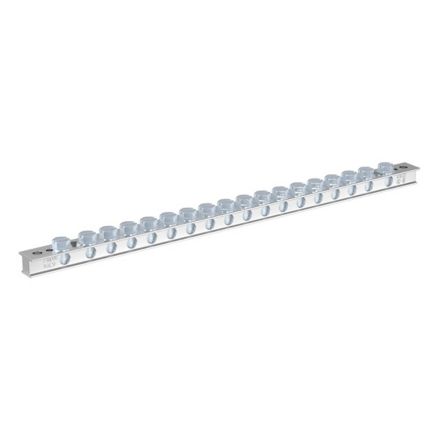

The UGB2/0-414-18 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 – #4 AWG wire in 18 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
Specifications
Specifications
Panduit - UGB2/0-414-18 - Product Categories
- Grounding & Bonding
- Universal Grounding Bars
Panduit - UGB2/0-414-18 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UGB2/0-414-18 |
| Item Description | StructuredGround UGB2/0-414-18 Universal Grd Bar, Silver, Copper, Tin-Plated |
| Sub Brand | StructuredGround |
| Product Type | Grounding Busbar |
| Material | Copper |
| Compatible Wire Gauge (AWG) | 4 |
| Overall Length (In.) | 11.64 |
| Overall Length (mm) | 295.7 |
| Color | Silver |
| Finish/Coating | Tin-Plated |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Overall Height (In.) | 0.48 |
| Overall Height (mm) | 12.2 |
| Standards Met | UL 467 and CSA certified 22.2 no.41 |
| Application | Control Panel |
| Number of Ports | 18 |
| Maximum Compatible Conductor Size (AWG SOL) | 14 |
| Minimum Compatible Conductor Size (AWG SOL) | 4 |
| Mounting Hole Width (In.) | 9.09 |
| Mounting Hole Width (mm) | 9.09 |
Panduit - UGB2/0-414-18 - Package Information
| UPC | 07498340224 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0180 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.1799 |
