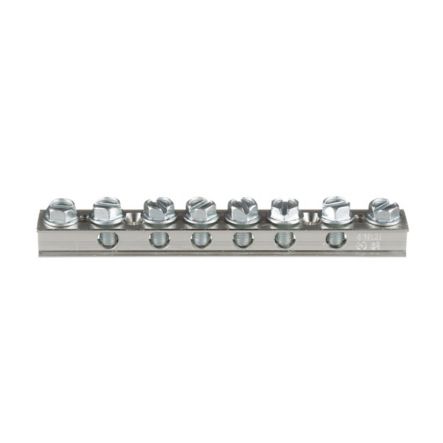

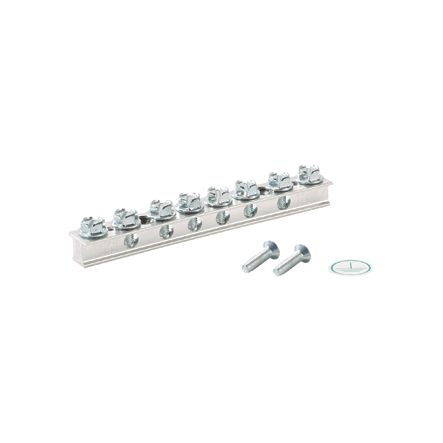

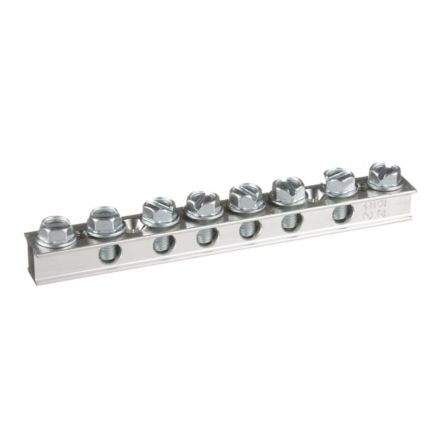

Panduit UGB2/0-414-6 6 Port Universal Ground Bar
Description
Description
The UGB2/0-414-6 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 – #4 AWG wire in 6 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
Specifications
Specifications
Panduit - UGB2/0-414-6 - Product Categories
- Grounding & Bonding
- Universal Grounding Bars
Panduit - UGB2/0-414-6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UGB2/0-414-6 |
| Item Description | StructuredGround UGB2/0-414-6 Universal Grd Bar, Silver, Cu, Tin-Plated, 6" L |
| Sub Brand | StructuredGround |
| Product Type | Grounding Busbar |
| Material | Copper |
| Compatible Wire Gauge (AWG) | 4 |
| Overall Length (In.) | 4.92 |
| Overall Length (mm) | 125 |
| Color | Silver |
| Finish/Coating | Tin-Plated |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
| Overall Height (In.) | 0.48 |
| Overall Height (mm) | 12.2 |
| Standards Met | UL 467 and CSA certified 22.2 no.41 |
| Application | Control Panel |
| Number of Ports | 6 |
| Maximum Compatible Conductor Size (AWG SOL) | 14 |
| Minimum Compatible Conductor Size (AWG SOL) | 4 |
| Mounting Hole Width (In.) | 2.37 |
| Mounting Hole Width (mm) | 2.37 |
Panduit - UGB2/0-414-6 - Package Information
| UPC | 07498340222 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0074 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.0741 |
Panduit - UGB2/0-414-6 - Videos
| Video 1 | Click to View |
|---|
