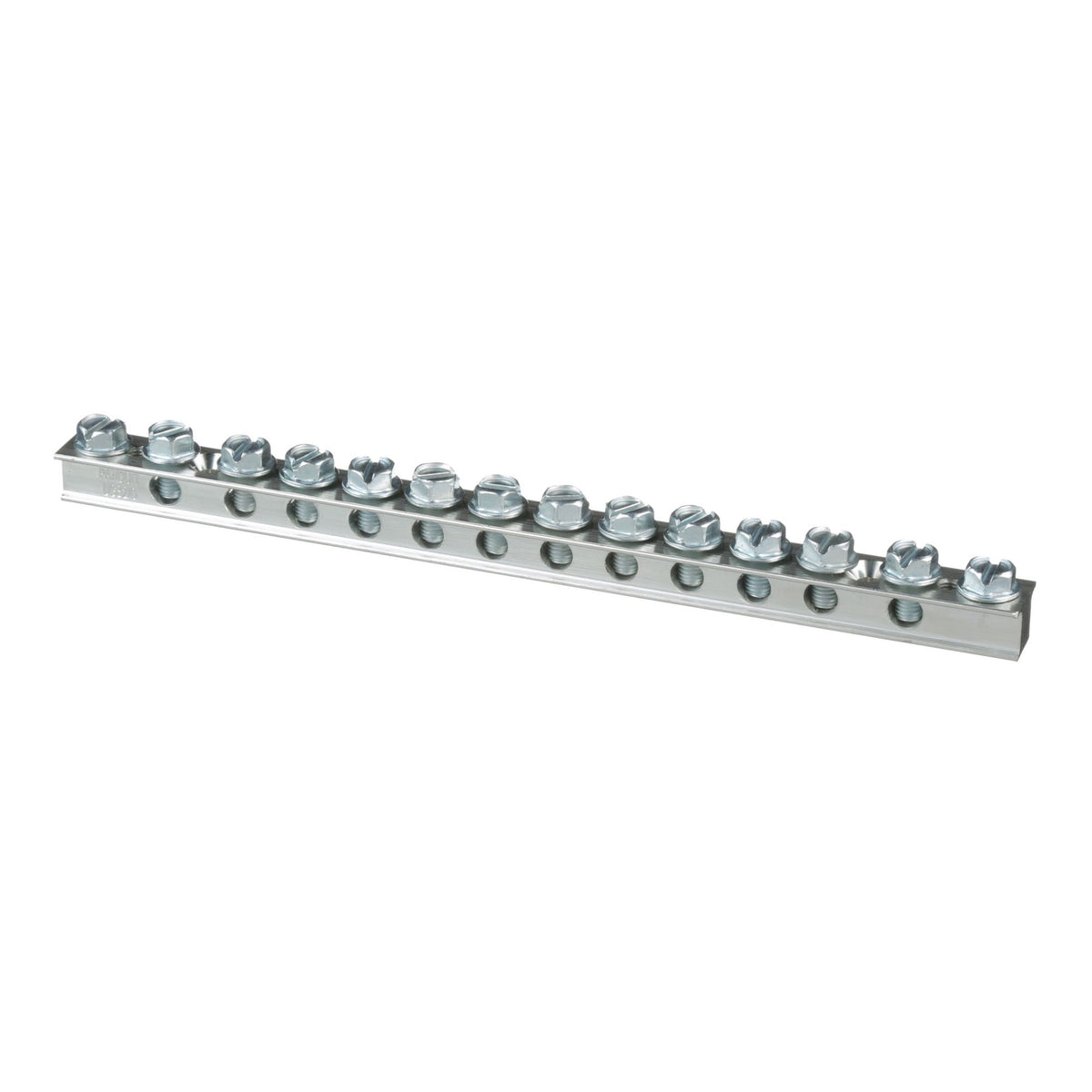

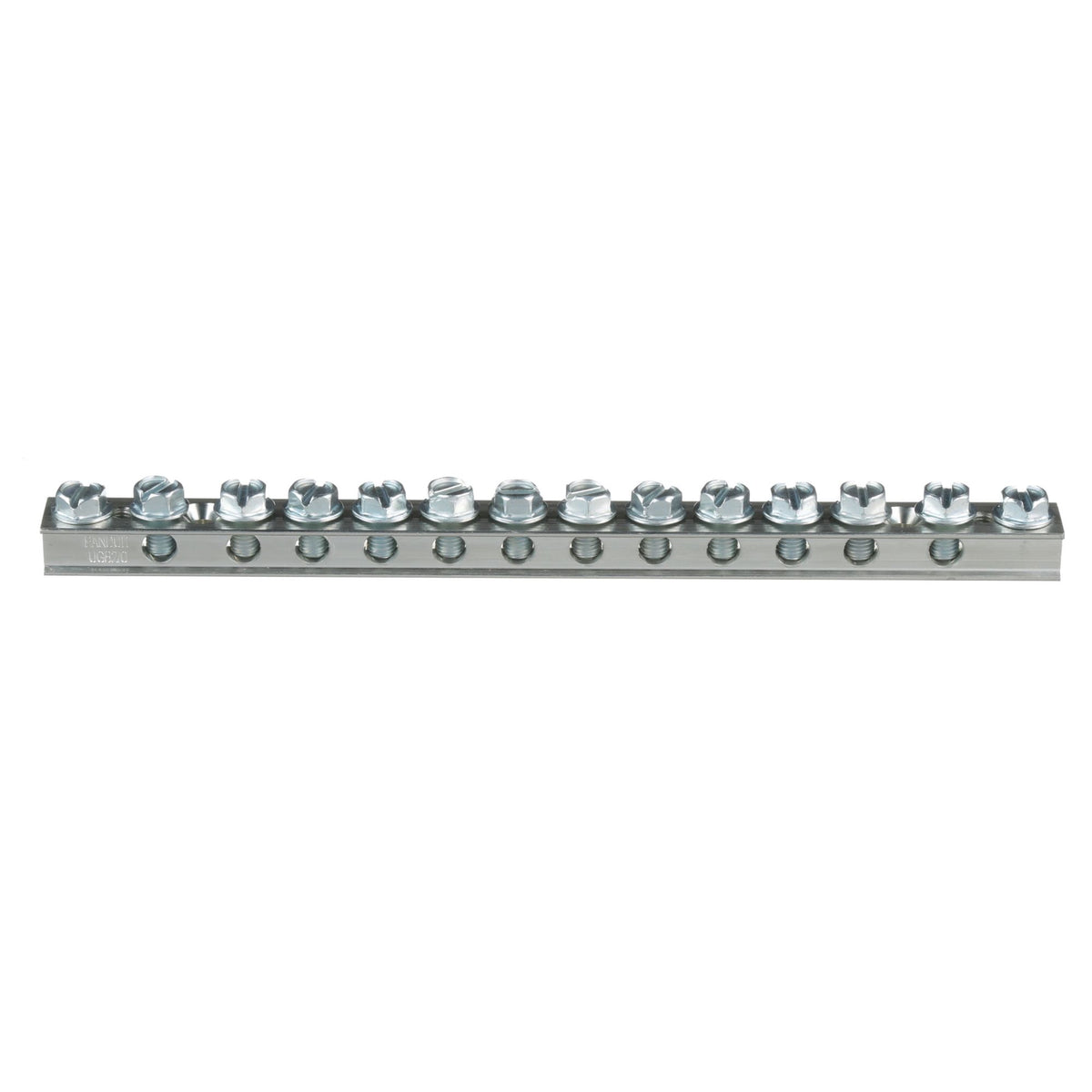

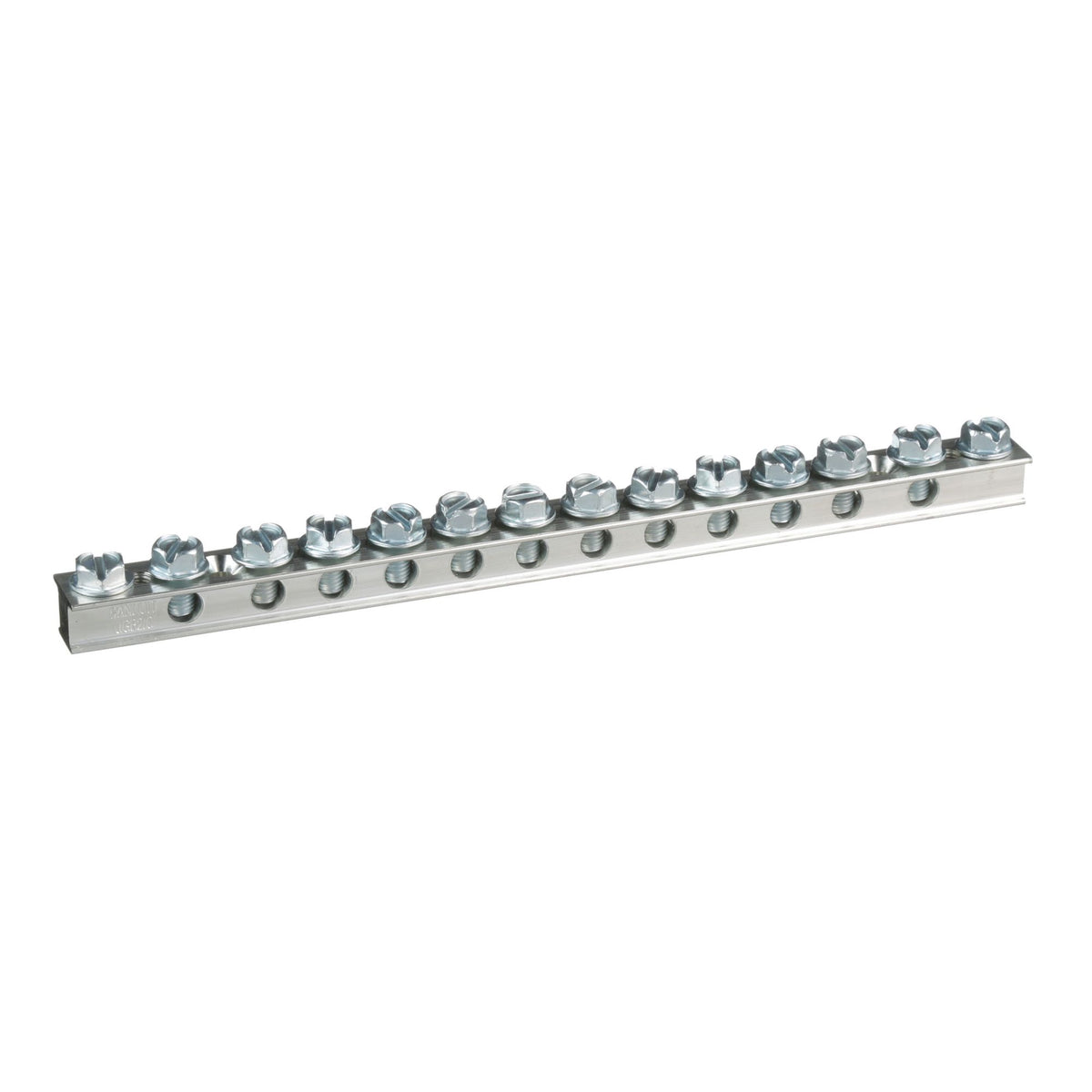

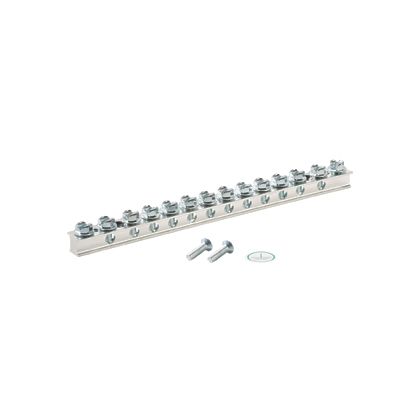

Panduit UGB2/0-414-8 | Panduit UGB2/0-414-8 Universal Ground Bar
Description
Description
The UGB2/0-414-8 Universal Ground Bar securely terminates the main equipment grounding conductor with a compression or mechanical connector in any control panel or enclosure. The universal ground bar accepts #14 – #4 AWG wire in 8 wire ports and up to a 2/0 AWG main equipment grounding conductor with a compression or mechanical connector. Several mounting options are available, including bonding stand-offs, isolation stand-offs, and direct mounting to a panel.
Panduit UGB2/0-414-8 | GROUND BAR | 8 PORT UNIVERSAL GROUND BAR
Specifications
Specifications
Panduit - UGB2/0-414-8 - Product Categories
- Grounding & Bonding
- Universal Grounding Bars
Panduit - UGB2/0-414-8 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UGB2/0-414-8 |
| Item Description | Panduit UGB2/0-414-8 Universal Ground Bar |
| Sub Brand | StructuredGround |
| Product Type | Universal Grounding Bar |
| Overall Length (In.) | 6.04 |
| Overall Length (mm) | 153.4 |
| Color | Silver |
| Finish/Coating | Tin-Plated |
| Standards Met | UL 467 listed and CSA certified 22.2 No. 41 |
| Application | Control Panel |
| Number of Ports | 8 |
| Maximum Compatible Conductor Size (AWG STR) | 4 |
| Minimum Compatible Conductor Size (AWG STR) | 14 |
| Mounting Hole Width (In.) | 0.28 |
| Mounting Hole Width (mm) | 7.1 |
Panduit - UGB2/0-414-8 - Package Information
| UPC | 61305631453 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0186 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1860 |
Panduit - UGB2/0-414-8 - Videos
| Video 1 | Click to View |
|---|
