Brand: Panduit
|
SKU:
621867
Panduit UPPBU150 | PanZone Zone Cable Assembly
Regular price
$232.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit UPPBU150 | PanZone Zone Cable Assembly
Regular price
$232.44
Unit price
Description
Description

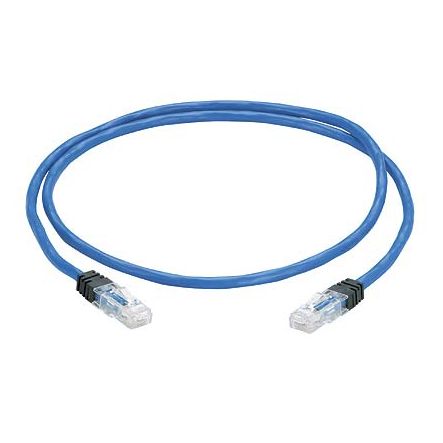

Panduit UPPBU150 | PanZone Zone Cable Assembly
The PanZone Cat6 UTP Zone Cord is a 150-Foot, Blue cable assembly that is constructed of 23 AWG, unshielded, twisted pair, solid, CMP cable with high-performance TX6 PLUS modular plugs. Its solid conductor design ensures reliable permanent link performance. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UPPBU150 - Features
- PanZone(TM) Category 6A and Category 6 Cable Assemblies for use in zone cabling applications
- Available in plug to jack module or plug to plug configurations
- Available in plenum or riser cable
- T568B wired
Specifications
Specifications
Panduit - UPPBU150 - Product Categories
- Copper Systems
- Patch Cords
Panduit - UPPBU150 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UPPBU150 |
| Item Description | PanZone Zone Cable Assembly |
| Application | Provide an efficient and cost effective way to design and deploy cabling systems in data centers and open office architecture environments. |
| Product Type | Zone Cable Assembly |
| Conductor Gauge (AWG) | 23 |
| Conductor Gauge (kcmil) | 0.5 |
| Performance Level | Category 6 |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 150 |
| Sub Brand | PanZone |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Flammability Rating | Plenum |
| Standards Met | Exceeds all ANSI/TIA 568.D-2, Category 6 ISO 11801 Class E, EN50173-1: 2002 (LSZH) channel and permanent link standards requirement; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Meets IEEE 802.3af IEEE 802.3bt and IEEE 802.3at for PoE applications; UL 1863, CSA Standard C22.2; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | Patented tangle-free latch on modular plugs, Robust construction, 100% performance tested. |
Panduit - UPPBU150 - Package Information
| UPC | 07498396472 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.3606 |
| Standard. Ctn. Quantity | 5 |
| Standard. Ctn. Volume (cf) | 1.8029 |
