Panduit UPPBU20 | PanZone
Regular price
$62.66
Unit price
Description
Description

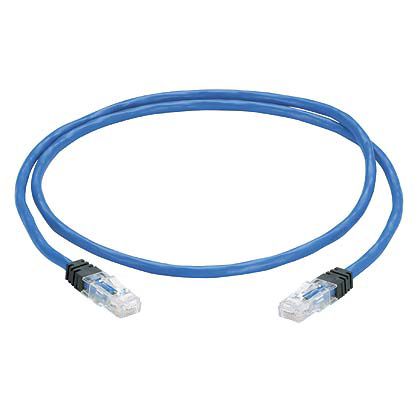

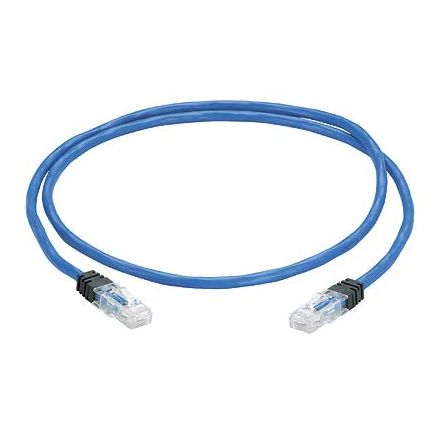

Panduit UPPBU20 | PanZone
The PanZone Cat6 UTP Zone Cord is a 20-Foot, Blue cable assembly that is constructed of 23 AWG, unshielded, twisted pair, solid, CMP cable with high-performance TX6 PLUS modular plugs. Its solid conductor design ensures reliable permanent link performance. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UPPBU20 Zone Cord, Category 6 Utp Solid Plenum Blue Cable, Plug To Plug, 20ft
Specifications
Specifications
Panduit - UPPBU20 - Product Categories
- Copper Systems
- Patch Cords
Panduit - UPPBU20 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UPPBU20 |
| Item Description | PanZone |
| Sub Brand | PanZone |
| Conductor Gauge (AWG) | 23 |
| Performance Level | Category 6 |
| Conductor Type | Modular Plug |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 20 |
| Overall Length (m) | 6.1 |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Nominal Cable Outside Diameter (mm) | 6.1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 14 |
| Minimum Operating Temperature (°F) | 14 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | Plenum |
| IEC Variant | IEC 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| RapidID Enabled | Yes |
| Part Features | Patented tangle-free latch on modular plugs, Robust construction, 100% performance tested. |
Panduit - UPPBU20 - Package Information
| UPC | 07498306869 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0397 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3970 |
