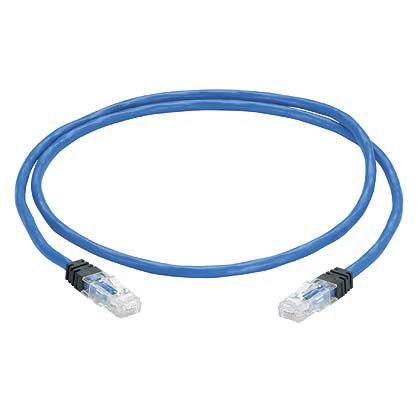

Panduit UPPBU35 | PanZone Zone Cable Assembly
Description
Description
With a solid conductor design for reliable permanent link performance, our Cat 6 UTP pre-terminated zone cord simplifies installations with tangle-free handling.
Category 6, UTP, solid, plenum, blue cable with TX6 PLUS Modular Plugs on each end. 35 ft.
Zone cable assemblies shall constructed Category , 23 AWG, solid, UTP, twisted cable available to jack to termination configurations. All cable assemblies shall available plenum, riser LSZH (Low Smoke Zero Halogen) flammability shall wired according to guidelines. A variety shall available for design flexibility.
Panduit PanZone Cable Assembly, Zone Cord U/UTP, Category: Cat 6, 24 AWG Conductor, Copper Conductor, Modular Plug Connector, 35 ft Cord, Blue
Panduit - UPPBU35 - Features
- Matrix technology
- Superior headroom warranty
- Flexible cable design
- Centered de-embedded plug
- Patented tangle free latch
- 100% performance tested for wire map, next and return loss
- Slender strain relief boot
- Robust construction
- PanZone(TM) Category 6A and Category 6 Cable Assemblies for use in zone cabling applications
- Available in plug to jack module or plug to plug configurations
- Available in plenum or riser cable
- T568B wired
Specifications
Specifications
Panduit - UPPBU35 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UPPBU35 |
| Category | Category 6 |
| Color | Blue |
| Lengths | 35 Ft. | 10.67 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Zone Cable Assembly |
| Application | Provide an efficient and cost effective way to design and deploy cabling systems in data centers and open office architecture environments. |
| Conductor Gauge (AWG) | 23 |
| Conductor Gauge (kcmil) | 0.5 |
| Performance Level | Category 6 |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 35 |
| Sub Brand | PanZone |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Flammability Rating | Plenum (CMP) |
| Standards Met | Exceeds all ANSI/TIA 568.D-2, Category 6 ISO 11801 Class E, EN50173-1: 2002 (LSZH) channel and permanent link standards requirement; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Meets IEEE 802.3af IEEE 802.3bt and IEEE 802.3at for PoE applications; UL 1863, CSA Standard C22.2; RoHS |
| UPC | 07498396457 |
Panduit - UPPBU35 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.2000 |
