Panduit UPRBU30M | PanZone Zone Cable Assembly
Regular price
$65.49
Unit price
Brand: Panduit
|
SKU:
1034391
Regular price
$65.49
Unit price
Description
Description
Panduit UPRBU30M | PanZone Zone Cable Assembly

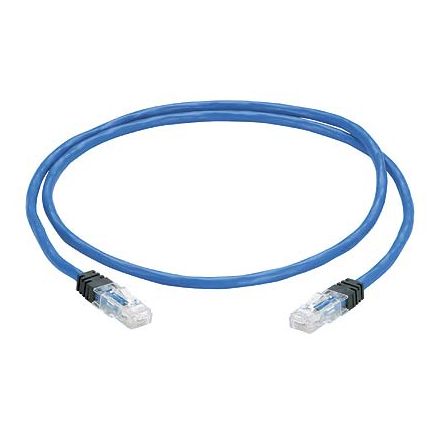

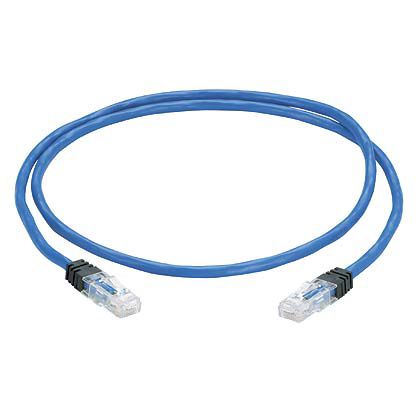

The PanZone Cat6 UTP Zone Cord is a 30-Meter, Blue cable assembly that is constructed of 23 AWG, unshielded, twisted pair, solid, CMR cable with high-performance TX6 PLUS modular plugs. Its solid conductor design ensures reliable permanent link performance. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit UPRBU30M Zone Cord, Cat6 Utp Solidriser Blue Cableplug To Plug 30m
Specifications
Specifications
Panduit - UPRBU30M - Product Categories
- Copper Systems
- Patch Cords
Panduit - UPRBU30M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UPRBU30M |
| Item Description | PanZone Zone Cable Assembly |
| Application | Provide an efficient and cost effective way to design and deploy cabling systems in data centers and open office architecture environments. |
| Product Type | Zone Cable Assembly |
| Conductor Gauge (AWG) | 23 |
| Conductor Gauge (kcmil) | 0.5 |
| Sub Brand | PanZone |
| Performance Level | Category 6 |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 30 |
| Nominal Cable Outside Diameter (mm) | 6.1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Color | Blue |
| Flammability Rating | Riser |
| Standards Met | Exceeds all ANSI/TIA 568.D-2, Category 6 ISO 11801 Class E, EN50173-1: 2002 (LSZH) channel and permanent link standards requirement; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Meets IEEE 802.3af IEEE 802.3bt and IEEE 802.3at for PoE applications; UL 1863, CSA Standard C22.2; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | Patented tangle-free latch on modular plugs, Robust construction, 100% performance tested. |
Panduit - UPRBU30M - Package Information
| UPC | 07498398102 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2002 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 2.0019 |
