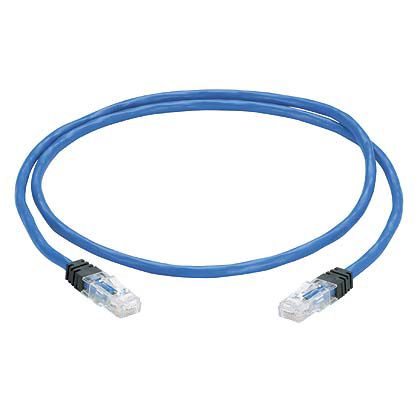

Panduit UPRBU80 | Zone Cable Assembly | UPC - 07498392648
Regular price
$99.21
Unit price
Brand: Panduit
|
SKU:
9780437
Regular price
$99.21
Unit price
Description
Description
Zone cable assemblies shall constructed Category , 23 AWG, solid, UTP, twisted cable available to jack to termination configurations. All cable assemblies shall available plenum, riser LSZH (Low Smoke Zero Halogen) flammability shall wired according to guidelines. A variety shall available for design flexibility.
Panduit PanZone Cable Assembly, Zone Cord, Series: UPRBU, Category: Cat 6, 24 AWG Conductor, U/UTP Copper Conductor, Modular Plug Connector, 80 ft Cord Length, Blue, 140 deg F
Features + Benefits
- Switch/server port detection
- 100% performance tested
- Integral pair manager
- Slender strain relief boot
- Patented tangle free latch
- Ninth conductor continuity
- LED indicator and switch
Panduit UPRBU80 Key Specs
| Application | Provide an efficient and cost effective way to design and deploy cabling systems in data centers and open office architecture environments |
| Product Type | Zone Cable Assembly |
| Conductor Gauge (AWG) | 23 |
| Conductor Gauge (kcmil) | 0.5 |
| Performance Level | Category 6 |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 80 |
| Sub Brand | PanZone |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Color | Blue |
| Flammability Rating | Riser |
| Standards Met | Exceeds all ANSI/TIA 568.D-2, Category 6 ISO 11801 Class E, EN50173-1: 2002 (LSZH) channel and permanent link standards requirement; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Meets IEEE 802.3af IEEE 802.3bt and IEEE 802.3at for PoE applications; UL 1863, CSA Standard C22.2; RoHS Complaint |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE++ |
| Plug Type | 8 Position |
| Part Features | Patented tangle-free latch on modular plugs, Robust construction, 100% performance tested. |
Panduit UPRBU80 Data Sheets
| Part Drawings | Category 6 Plug-to-Plug Zone Cords ZCUPPBU10Y--ENG | Download and View |
| Specification Sheets | PanZone Category 6 UTP Cable Assemblies | Download and View |
