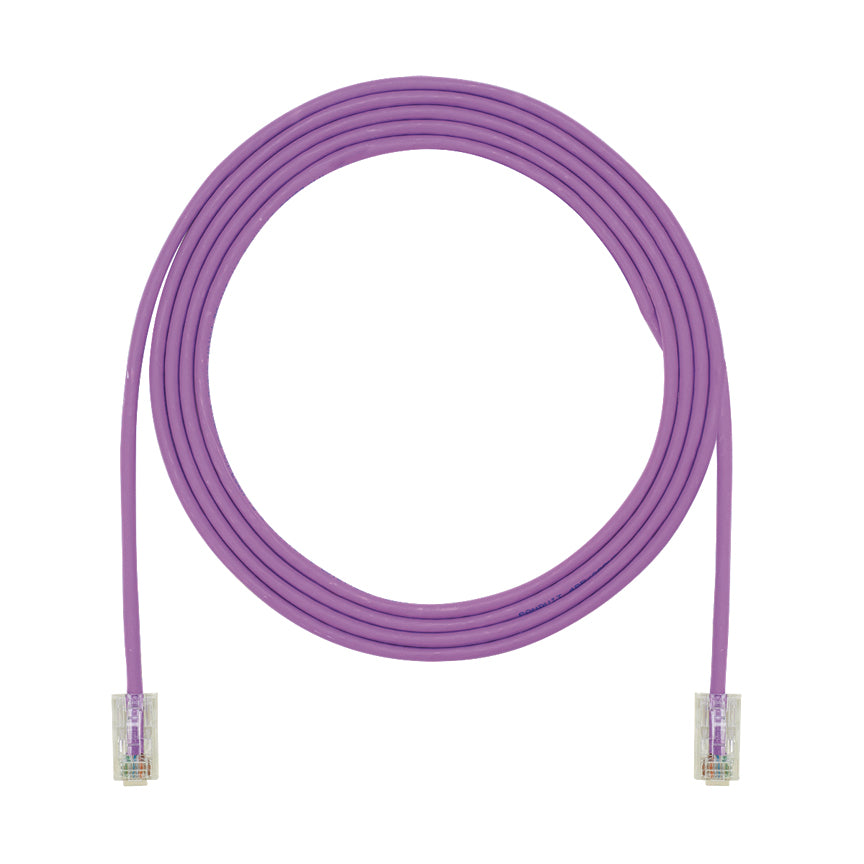

Panduit UTP28CH3VL | Patch Cord | UPC - 07498348577
Regular price
$12.16
Unit price
Brand: Panduit
|
SKU:
MM03-PAC5E-10
Regular price
$12.16
Unit price
Description
Description
Category 5e/Class D, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Panduit PanNet TX5e-28 Patch Cord, U/UTP Small Diameter, Series: UTP28CH, Category: Cat 5e, 28 AWG Conductor, Stranded Copper Conductor, RJ45 Connector, 3 ft Cord Length, Violet, 14 to 167 deg F
Features + Benefits
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Smaller diameter, flexible cable design
- Robust construction
Panduit UTP28CH3VL | Patch Cord | UPC - 07498348577 Key Specs
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet)(2) 155 Mb/s ATM, 622 Mb/s ATM(3) Voice/data systems (4) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 3 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
Panduit UTP28CH3VL | Patch Cord | UPC - 07498348577 Data Sheets
| Technical References | Patch Cord Wiring Guide: TR103 | Download and View |
| Part Drawings | TX5e UTP 28AWG Copper Patch Cords (CM/LSZH) COUTP28CH--ENG | Download and View |
| Selection Guides | 28 AWG Selection Guide - Category 6A, 6, & 5e (NA, LA): COSG10--WW-ENG | Download and View |
Panduit UTP28CH3VL | Patch Cord | UPC - 07498348577 Environmental Information
| Panduit's RoHS Statement | Download and View |
