Panduit UTP28CH5MBL | Pan-Net Patch Cord
Regular price
$17.39
Unit price
Brand: Panduit
|
SKU:
MM05M-PAC5E-02
Regular price
$17.39
Unit price
Description
Description

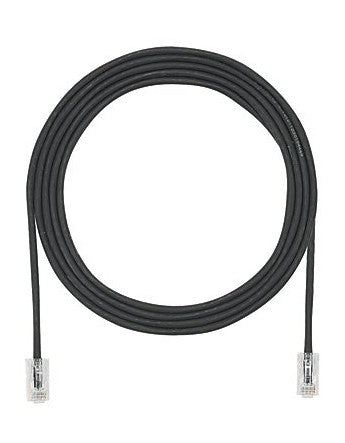

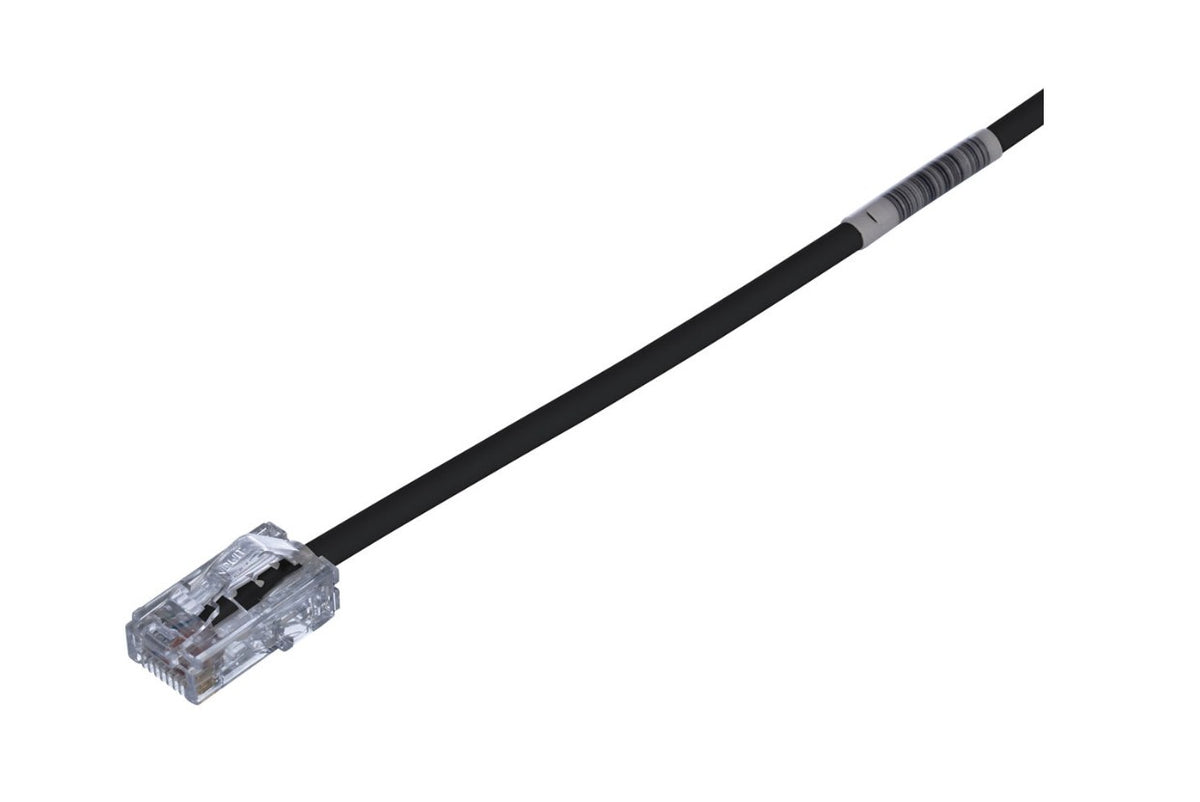

Panduit UTP28CH5MBL | Pan-Net Patch Cord
Streamline your network setup with our versatile, tangle-free Category 5e UTP patch cord, available in a variety of metric lengths and colors for easy organization and identification.
Specifications
Specifications
Panduit - UTP28CH5MBL - Package Contents
| UPC | 07498348953 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0270 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.2701 |
Panduit - UTP28CH5MBL - Specifications
| Product Type | Patch Cord |
|---|---|
| Sub Brand | Pan-Net® |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge | 28 AWG |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Shield Type | Unshielded (UTP) |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 16.4 |
| Overall Length (m) | 5 |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Nominal Cable Outside Diameter (mm) | 3.8 |
| Wiring Scheme | RJ45/T568A |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
