Brand: Panduit
|
SKU:
RGP-MM10-PA7SD-05

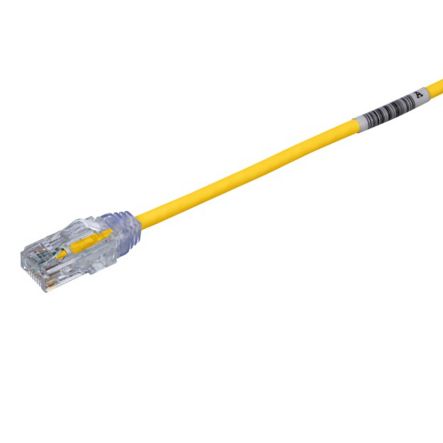

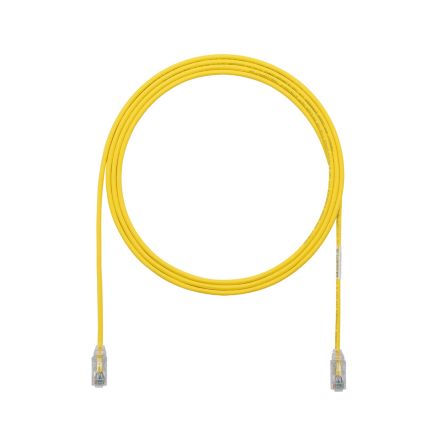

Panduit UTP28SP10YL | Cat 6 28 Awg Utp Copper Patch Cord, 10 Ft, Yellow
Regular price
$18.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit UTP28SP10YL | Cat 6 28 Awg Utp Copper Patch Cord, 10 Ft, Ye...
Regular price
$18.63
Unit price
Brand: Panduit
|
SKU:
RGP-MM10-PA7SD-05
Regular price
$18.63
Unit price
Shipping calculated at checkout.
Description
Description
Panduit UTP28SP10YL | Cat 6 28 Awg Utp Copper Patch Cord, 10 Ft, Yellow
The TX6-28 Cat 6 UTP Patch Cord is a 10-Foot, 0.150-inch (3.8mm) diameter, Yellow cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTP28SP10YL - Features
- Cat 6/class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
- Panduit PanNet TX6-28 Patch Cord, U/UTP Class EA Small Diameter, Series: UTP28SP, Category: Cat 6, 28 AWG Conductor, Stranded Tin Plated Copper Conductor, RJ45 Modular Plug Connector, 10 ft Cord Length, Yellow Jacket, 14 to 167 deg F
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager optimizes performance and consistency by reducing untwist at plug
- Patented tangle free latch prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
- Smaller diameter, flexible cable design
- Robust construction plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
- Identification label provides identification of performance level, length and quality control number for traceability
- 28 AWG UTP patch cord with TX6™ modular plugs on each end
- 0.15 in OD
Specifications
Specifications
Panduit - UTP28SP10YL - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTP28SP10YL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28SP10YL |
| Item Description | Cat 6 28 Awg Utp Copper Patch Cord, 10 Ft, Yellow |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.16 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 10 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Yellow |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
| MPN: | UTP28SP10YL |
| Category Type: | Cat 6 |
| Conductor Size: | 28 AWG |
| Conductor Type: | Stranded Tin Plated Copper |
| Connector Type: | RJ45 Modular Plug |
| Cord Length: | 10 ft |
| Jacket Color: | Yellow |
| Series: | UTP28SP |
| Temperature Rating: | 14 to 167 deg F |
| Type: | U/UTP Class EA Small Diameter |
Panduit - UTP28SP10YL - Package Information
| UPC | 07498365314 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0193 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1925 |
