For reliable network connections, choose our Cat 6 UTP patch cord. Enjoy easy installation, tangle-free use, and quick port identification with our compact design technology.
Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.

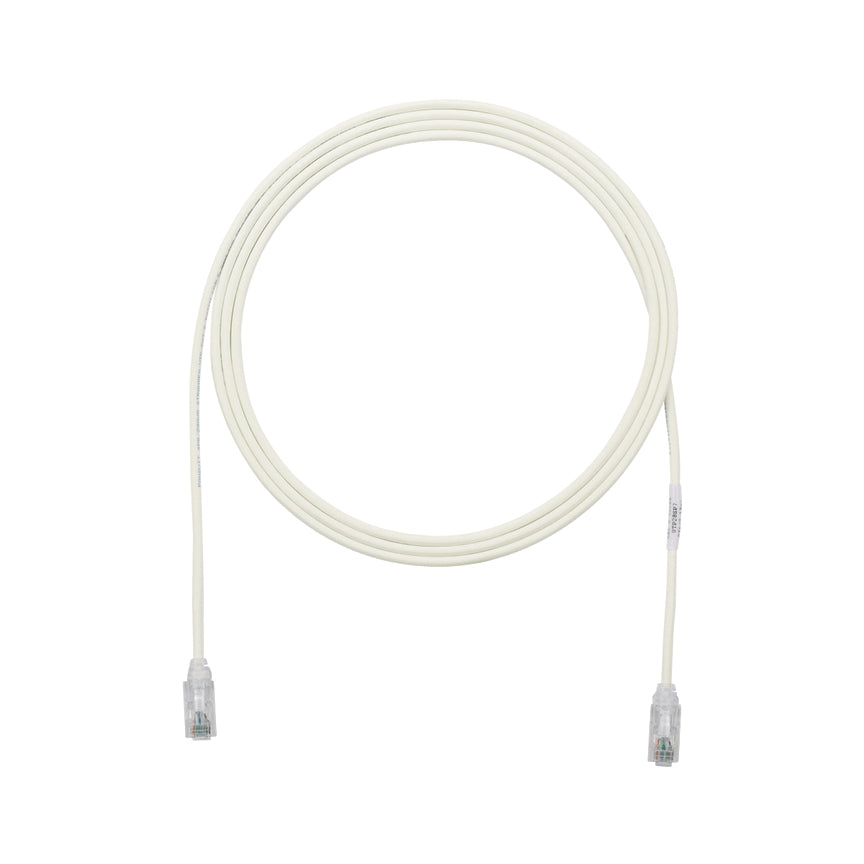

Panduit PanNet TX6-28 Patch Cord, U/UTP, Category: Cat 6, 28 AWG Conductor, Copper Conductor, Modular Plug Connector, 8.2 ft Cord, Gray
Panduit - UTP28SP2.5MGY - Features
- Interoperable
- Matrix technology
- Smaller cable diameter than most Category 6 patch cords and flexible cable design
- 100% performance tested for wire map, next and return loss
- Superior headroom warranty
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch on modular plugs
- Slender strain relief boot
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
Specifications
Specifications
Panduit - UTP28SP2.5MGY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28SP2.5MGY |
| Product Type | Patch Cord |
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2.5 |
| Nominal Cable Outside Diameter (mm) | 3.8 |
| Wiring Scheme | RJ45/T568B |
| Maximum Operating Temperature (°C) | 75 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| UPC | 07498396013 |
