Brand: Panduit
|
SKU:
MM02M-PA7SD-04

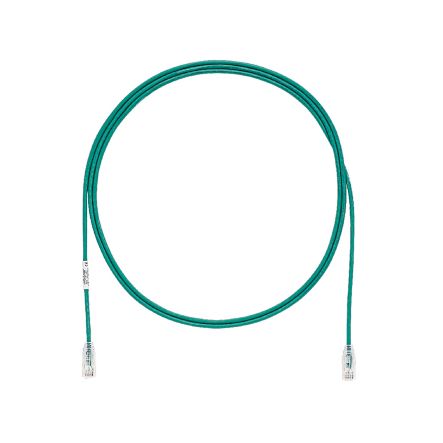

Panduit UTP28SP2MGR | TX6 Plus 28 AWG 4-Pair Stranded UTP Patch Cord, Modular Plug On Each End, Category 6/Class E Performance, Dual Rated (CM/LSZH) Rated, 2 m, Green
Regular price
$21.09
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit UTP28SP2MGR | TX6 Plus 28 AWG 4-Pair Stranded UTP Patch Cor...
Regular price
$21.09
Unit price
Brand: Panduit
|
SKU:
MM02M-PA7SD-04
Regular price
$21.09
Unit price
Shipping calculated at checkout.
Description
Description
Panduit UTP28SP2MGR | Pan-Net Patch Cord

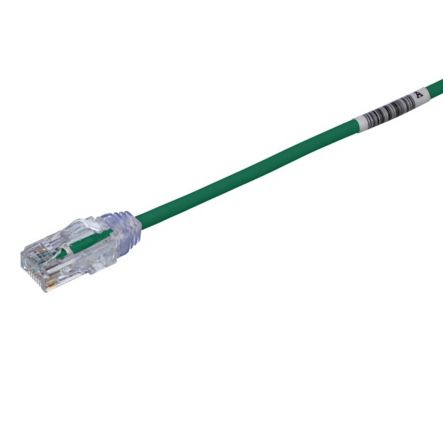

The TX6-28 Cat 6 UTP Patch Cord is a 2-Meter, 0.150-inch (3.8mm) diameter, Green cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTP28SP2MGR - Features
- Tight bend radius enables improved cable routing and management in high density applications, smaller cable diameter allows twice the amount of cables to be routed through cable managers and pathways compared to traditional Category 6 patch cable
- Reduced cable diameter facilitates improved air flow, cooling, resulting in lower operating costs than traditional Category 6 patch cables
- Confidence that each patch cord delivers critical electrical component level performance
- Integral pair manager - Optimizes performance and consistency by reducing untwist at plug
- Patented tangle-free latch - Prevents snags and provides easy release, saving time on frequent moves, adds and changes
- Flexible stranded cable - U/UTP stranded 28 AWG copper cable with a nominal diameter of 0.150 Inch (3.8 mm) allows for high density installations and superior panel cable management
- Dual rated - Same patch cord meets CM and LSZH flame ratings; less material is more eco-friendly
- Provides identification of performance level, length and quality control number for future traceability
- Robust construction - Plug contact plated with 50 Micro-Inch of gold and rated to 2500 mating cycles
Specifications
Specifications
Panduit - UTP28SP2MGR - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTP28SP2MGR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28SP2MGR |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry 10GBASE-T standards) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM Token ring 4/16 (3) Digital video and broadband/baseband analog video (4) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.16 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2 |
| Nominal Cable Outside Diameter (mm) | 3.8 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Green |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E standards for all frequencies from 1 to 250 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
Panduit - UTP28SP2MGR - Package Information
| UPC | 07498365692 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0177 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1773 |
