Panduit UTP28SP34RD | Patch Cord | UPC - 07498335994
Regular price
$41.77
Unit price
Brand: Panduit
|
SKU:
MM34-PA7SD-03
Regular price
$41.77
Unit price
Description
Description

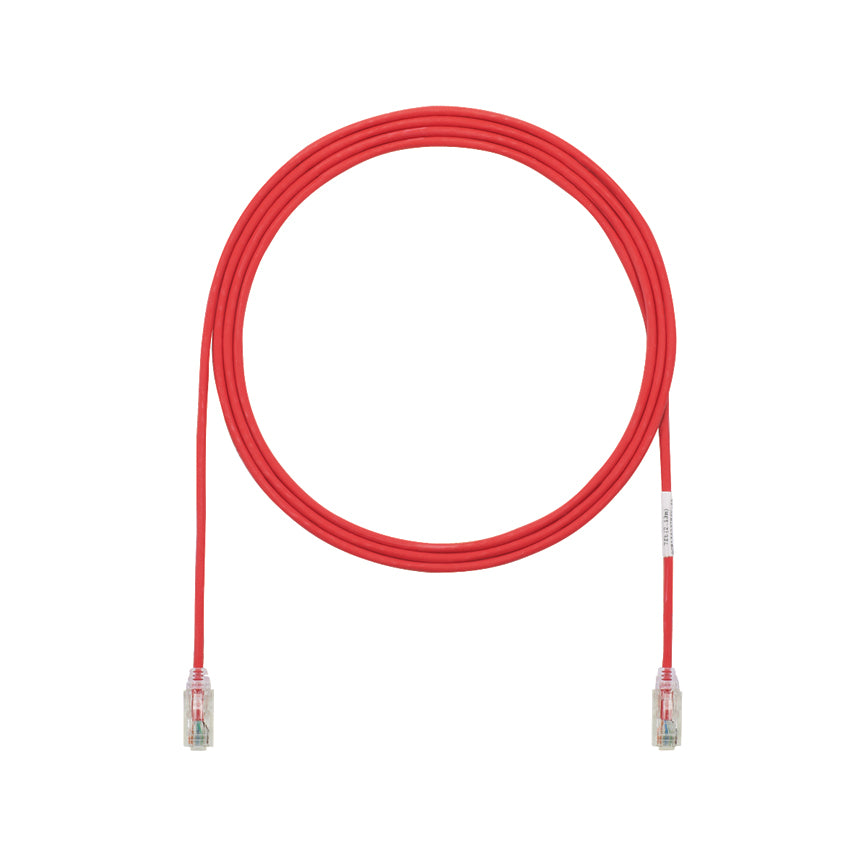

Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Panduit PanNet TX6-28 Patch Cord, U/UTP, Category: Cat 6, 28 AWG Conductor, Copper Conductor, Modular Plug Connector, 34 ft Cord, Red
Features + Benefits
- Interoperable
- Matrix technology
- Smaller cable diameter than most Category 6 patch cords and flexible cable design
- 100% performance tested for wire map, next and return loss
- Superior headroom warranty
- Centered de-embedded plug
- Integral pair manager
- Patented tangle-free latch on modular plugs
- Slender strain relief boot
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
Panduit UTP28SP34RD | Patch Cord | UPC - 07498335994 Key Specs
| Product Type | Patch Cord |
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video, Voice/data systems (4) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (kcmil) | 0.2 |
| Conductor Gauge (AWG) | 28 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 34 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
Panduit UTP28SP34RD | Patch Cord | UPC - 07498335994 Data Sheets
| Specification Sheets | TX6-28 Category 6 Performance 28 AWG UTP Patch Cords | Download and View |
| Selection Guides | Patch Cord Selection Guide (All Regions): COSG11--WW-ENG | Download and View |
| Specification Sheets | Category 6 SD 28 AWG UTP Patch Cords (Japan): COSP229--WW-ENG | Download and View |
Panduit UTP28SP34RD | Patch Cord | UPC - 07498335994 Environmental Information
| Panduit's RoHS Statement | Download and View |
