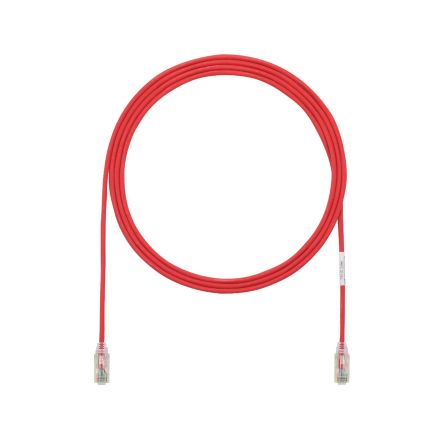

Panduit UTP28SP35RD | Pan-Net Patch Cord
Regular price
$43.09
Unit price
Brand: Panduit
|
SKU:
MM35-PA7SD-03
Regular price
$43.09
Unit price
Description
Description
Panduit UTP28SP35RD | Pan-Net Patch Cord
The TX6-28 Cat 6 UTP Patch Cord is a 35-Foot, 0.150-inch (3.8mm) diameter, Red cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - UTP28SP35RD - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTP28SP35RD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28SP35RD |
| Item Description | Pan-Net Patch Cord |
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video(4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 35 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Red |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E electrical performance requirements for frequencies up to 250 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications; cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886); RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTP28SP35RD - Package Information
| UPC | 07498365595 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0469 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4694 |
