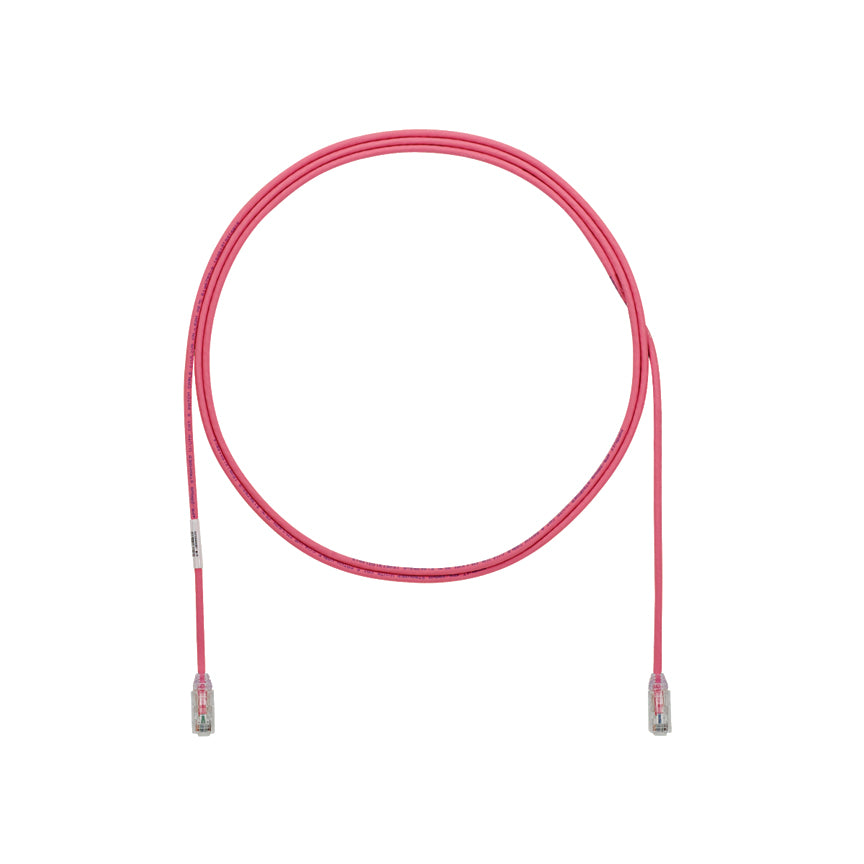

Panduit UTP28SP9PK | Patch Cord
Description
Description
Category 6 Performance, 28 AWG UTP patch cord with TX6 Modular Plugs on each end. Pink, 9 ft.
Category 6/Class E, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, stranded copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Panduit PanNet TX6-28 Patch Cord, U/UTP Small Diameter, Series: UTP28SP, Category: Cat 6, 28 AWG Conductor, Stranded Tin Plated Copper Conductor, RJ45 Connector, 9 ft Cord Length, Pink, 14 to 167 deg F
Panduit - UTP28SP9PK - Features
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Smaller diameter, flexible cable design
- Robust construction
Specifications
Specifications
Panduit - UTP28SP9PK - Specifications
| Lengths | 9 Ft. | 2.74 M |
|---|---|
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Application | (1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM (3) Digital video and broadband/baseband analog video(4) Voice/data systems (5)Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6 |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 9 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.15 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| UPC | 07498362498 |
