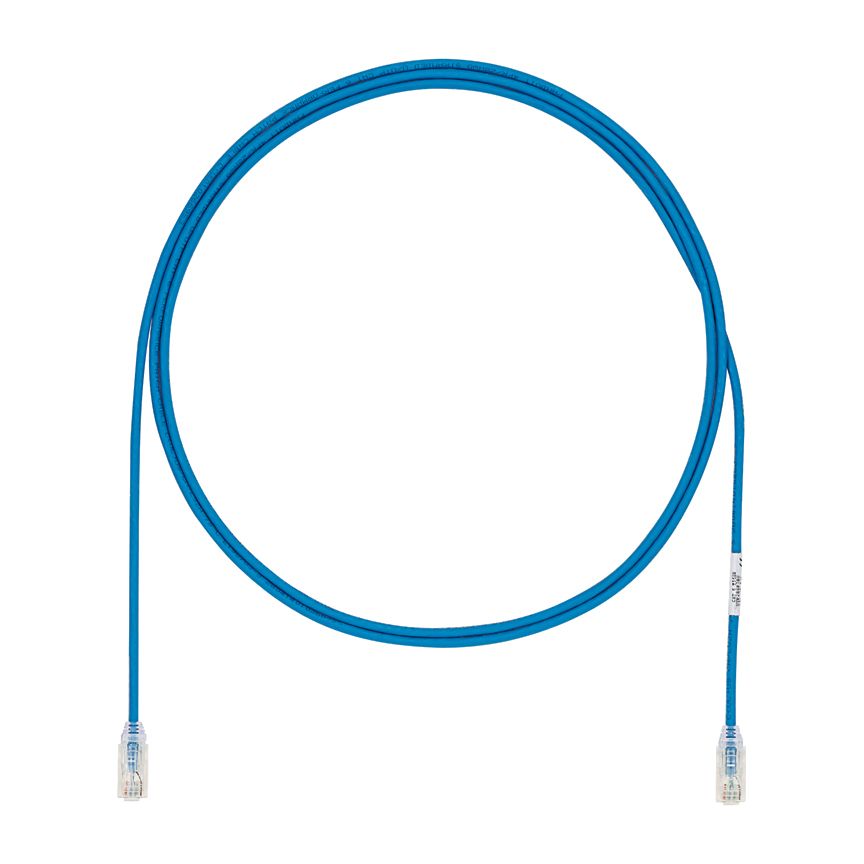

Panduit UTP28X0.2MGR | Pan-Net Patch Cord
Regular price
$21.09
Unit price
Brand: Panduit
|
SKU:
MM0.2M-PA6ASD-04
Regular price
$21.09
Unit price
Description
Description
Panduit UTP28X0.2MGR | Pan-Net Patch Cord
The TX6A-28 Cat 6A UTP Patch Cord is a 0.2-Meter, 0.185-inch (4.7mm) diameter, Green cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - UTP28X0.2MGR - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTP28X0.2MGR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28X0.2MGR |
| Item Description | Pan-Net Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.16 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 0.2 |
| Nominal Cable Outside Diameter (mm) | 4.7 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Clear |
| Color | Green |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Brand Name - UTP28X0.2MGR - Package Information
| UPC | 07498300613 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0155 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1550 |
