Panduit UTP28X0.5MBU | Pan-Net Cat 6A UTP Patch Cord is a 0.5-Meter
Description
Description

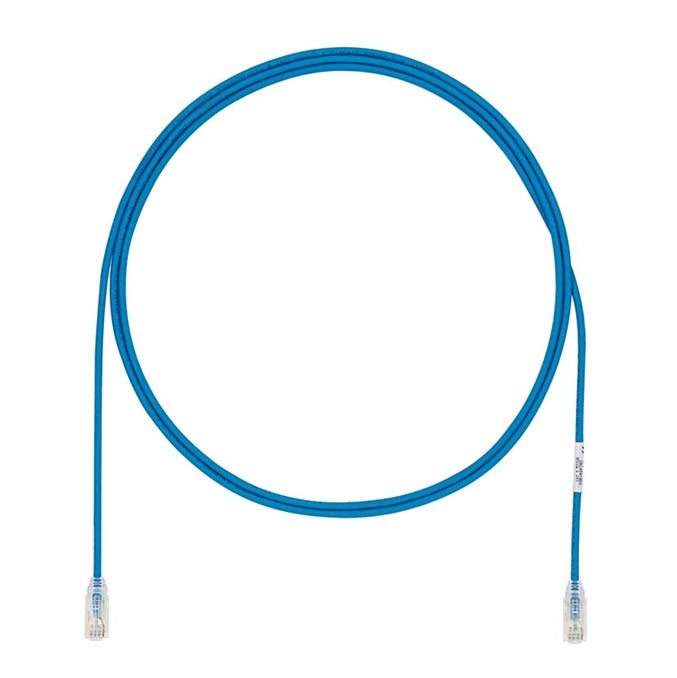

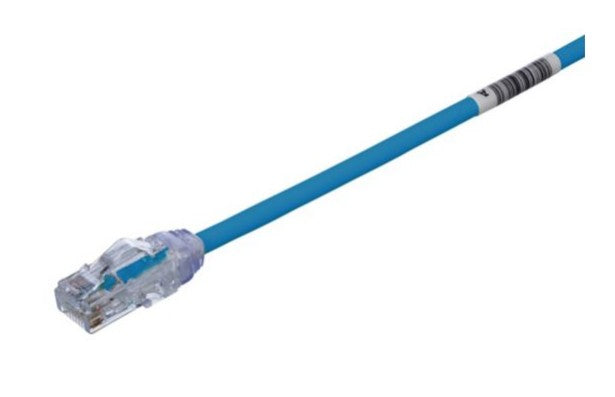

The TX6A-28 Cat 6A UTP Patch Cord is a 0.5-Meter, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - UTP28X0.5MBU - Specifications
| Product Type | Patch Cord |
|---|---|
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.16 |
| Sub Brand | Pan-Net® |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 0.5 |
| Nominal Cable Outside Diameter (mm) | 4.7 |
| Wiring Scheme | RJ45/T568B |
| Maximum Operating Temperature (°C) | 60 |
| Boot Color | Clear |
| Color | Blue |
Panduit - UTP28X0.5MBU - Package Information
| UPC | 7498300621 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.018 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.1804 |
