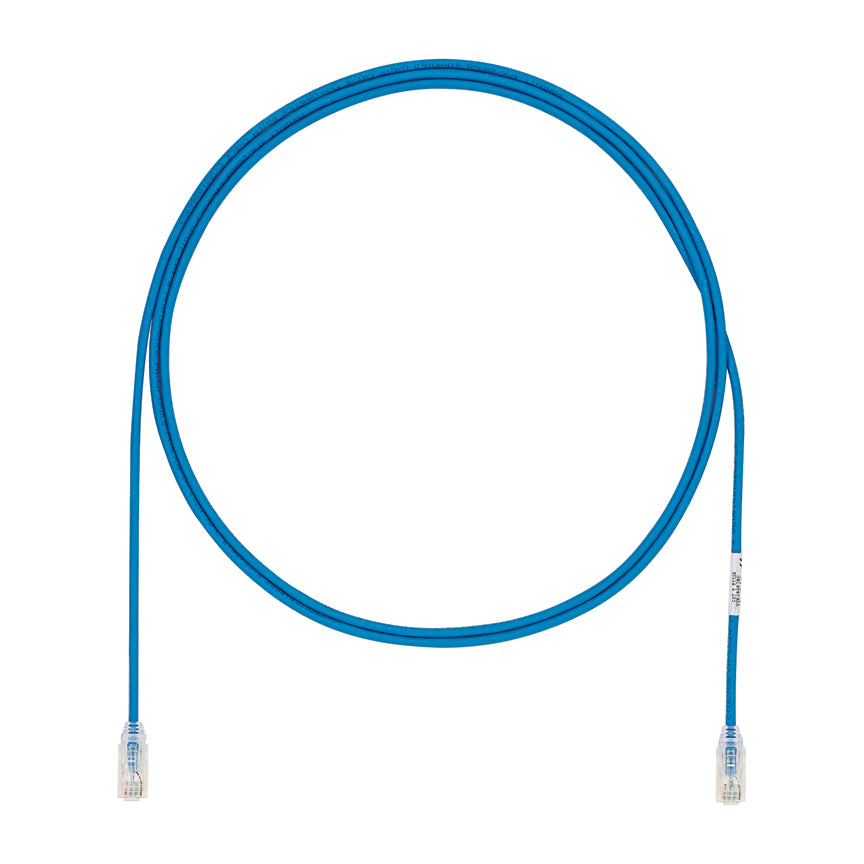

Panduit UTP28X12BU | Pan-Net Patch Cord
Description
Description
Boost your network's speed and reliability with our durable Cat 6A UTP patch cord. Features easy installation and efficient cable management when used with our identification system.
Category 6A Performance, 28AWG, UTP Patch Cord, CM/LSZH, Blue, 12ft.
Category 6A/Class EA, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
Panduit PanNet TX6A-28 Patch Cord, Small Diameter, Series: UTP28X, Category: Cat 6A, 28 AWG Conductor, F/UTP Copper Conductor, RJ45 Modular Plug Connector, 12 ft Cord, Blue, 167 deg F
Panduit - UTP28X12BU - Features
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Smaller diameter, flexible cable design
- Robust construction
Specifications
Specifications
Panduit - UTP28X12BU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28X12BU |
| Color | Blue |
| Lengths | 12 Ft. | 3.66 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing. |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 12 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.18 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| UPC | 07498304987 |
