Panduit UTP28X12BU | Pan-Net Patch Cord
Regular price
$28.37
Unit price
Brand: Panduit
|
SKU:
MM12-PA6ASD-06-DGII
Regular price
$28.37
Unit price
Description
Description

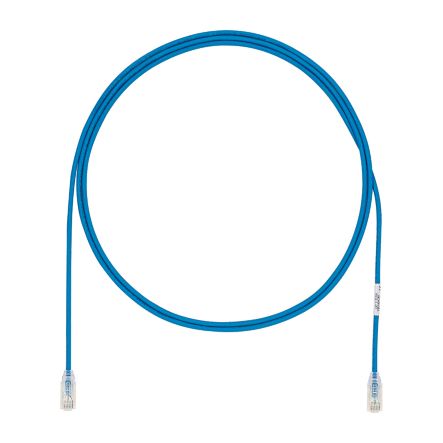

Panduit UTP28X12BU | Pan-Net Patch Cord
The TX6A-28 Cat 6A UTP Patch Cord is a 12-Foot, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTP28X12BU - Features
- Category 6A/Class EA, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for design flexibility.
- Panduit PanNet TX6A-28 Patch Cord, Small Diameter, Series: UTP28X, Category: Cat 6A, 28 AWG Conductor, F/UTP Copper Conductor, RJ45 Modular Plug Connector, 12 ft Cord, Blue, 167 deg F
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Smaller diameter, flexible cable design
- Robust construction
Specifications
Specifications
Panduit - UTP28X12BU - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTP28X12BU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28X12BU |
| Item Description | Pan-Net Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing. |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | F/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 12 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.18 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 andtype 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant.type 4 (24 cables in a bundle) PoE compliant. |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
| MPN: | UTP28X12BU |
| Category Type: | Cat 6a |
| Color: | Blue |
| Conductor Size: | 28 AWG |
| Conductor Type: | Solid Copper |
| Connector Type: | RJ45 |
| Cord Length: | 12 ft |
| Jacket Color: | Blue |
| Series: | UTP28X |
| Temperature Rating: | 14 to 140 deg F |
| Type: | U/UTP Small Diameter |
Panduit - UTP28X12BU - Package Information
| UPC | 07498304987 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0273 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2728 |
