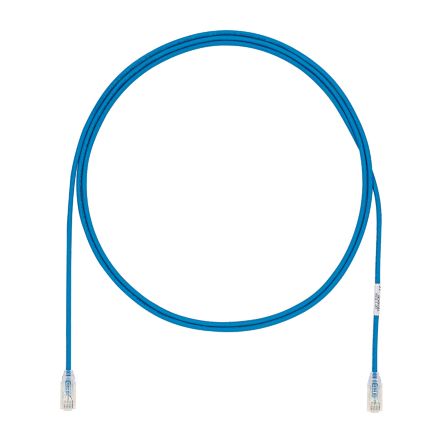

Panduit UTP28X2VL | Pan-Net Patch Cord
Regular price
$22.42
Unit price
Brand: Panduit
|
SKU:
MM02-PA6ASD-10
Regular price
$22.42
Unit price
Description
Description
Panduit UTP28X2VL | Pan-Net Patch Cord
The TX6A-28 Cat 6A UTP Patch Cord is a 2-Foot, 0.185-inch (4.7mm) diameter, Violet cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit - UTP28X2VL - Features
- Category 6A/Class EA, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. Patch cords are offered in multiple lengths and colors for desi gn
Specifications
Specifications
Panduit - UTP28X2VL - Product Categories
- Copper Systems
- Patch Cords
Panduit - UTP28X2VL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28X2VL |
| Item Description | Pan-Net Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing. |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | F/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 2 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.18 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| Color | Violet |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH, Meets ANSI/TIA-1096-A (formerly FCC Part 68),Meets IEC 60603-7, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 andtype 4 (24 cables in a bundle) PoE applications, cULus Listed; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS compliant.type 4 (24 cables in a bundle) PoE compliant. |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
| Part Features | 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch |
Panduit - UTP28X2VL - Package Information
| UPC | 07498399453 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0177 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1773 |
