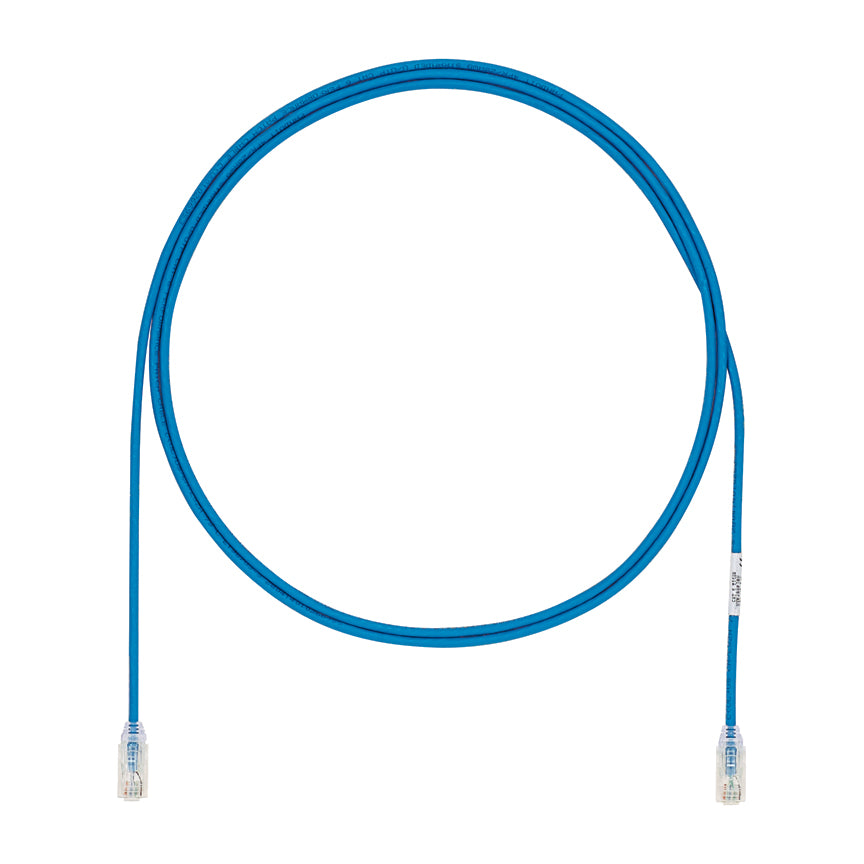

Panduit UTP28X3BU | Cat 6A 28 AWG UTP Copper Patch Cord, 3 ft, Blue
Description
Description
Boost your network's speed and reliability with our durable Cat 6A UTP patch cord. Features easy installation and efficient cable management when used with our identification system.
The TX6A-28 Cat 6A UTP Patch Cord is constructed of 28 AWG, unshielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 3 feet in length, 0.185 inches (4.7mm) nominal in diameter, and blue.
Cat 6A/class EA, UTP, small diameter patch cords are constructed of 28 AWG, unshielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. patch cords are offered in multiple lengths and colors for design flexibility.
Panduit PanNet TX6A-28 Patch Cord, Class EA Small Diameter, Series: UTP28X, Category: Cat 6A, 28 AWG Conductor, F/UTP Solid Copper Conductor, RJ45 Modular Plug Connector, 3 ft Cord Length, Blue, 14 to 167 deg F
Panduit - UTP28X3BU - Features
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Integral pair manager - optimizes performance and consistency by reducing untwist at plug
- Patented tangle free latch - prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds and changes
- Smaller diameter, flexible cable design
- Robust construction - plug contact plated with 50 u-in of gold and rated to 2500 mating cycles
- UL 94V-0 rated clear polycarbonate housing plug
- 0.19 in OD
Specifications
Specifications
Panduit - UTP28X3BU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | UTP28X3BU |
| Color | Blue |
| Lengths | 3 Ft. | 0.91 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | U/Utp - Unshielded Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5)Parallel processing and high speed computing. |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 3 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.18 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Clear |
| UPC | 07498399619 |
