Brand: Panduit | SKU: 10169274

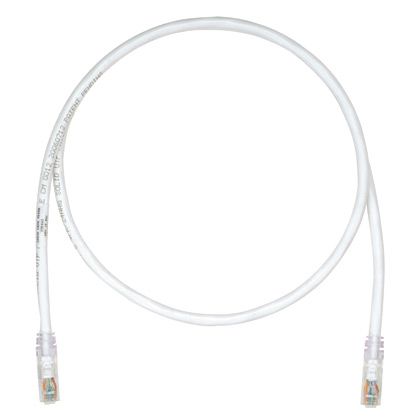

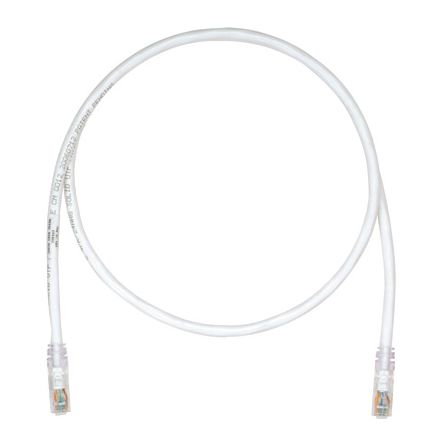

Panduit UTP6AL30M | Pan-Net Patch Cord

Name: Panduit UTP6AL30M | Pan-Net Patch Cord
Brand: Anixter
SKU: 10169274
Price: 49.47 USD
Availability: InStock

$49.47

Description

Category 6A, 10 Gb/s, UTP, LSZH patch cord with TX6A 10Gig Modular Plugs on each end.

Panduit UTP6AL30M Category 6a 10 Gbs Utp Lszhpatch Cord With Tx6aac 10gigamodular Plugs On

Brand Name	Panduit
Manufacturer Part Number	UTP6AL30M
Item Description	Pan-Net Patch Cord
Application	(1) 10GBASE-T Ethernet (2) Data center I/O consolidation (3) Data center server virtualization (4) Consolidation of network interconnects (5) Back-bone aggregation (6) Parallel processing and high speed computing
Product Type	Patch Cord
Conductor Gauge (AWG)	24
Conductor Gauge (kcmil)	0.4
Sub Brand	Pan-Net
Performance Level	Category 6A
Conductor Type	Stranded
Cable Construction	U/UTP
Patch Cord Type	Unshielded
Jacket Material	LSZH Material
Connector 1 Type	Modular Plug
Connector 2 Type	Modular Plug
Overall Length (m)	30
Nominal Cable Outside Diameter (mm)	6.8
Wiring Scheme	T568B
Maximum Operating Temperature (°C)	60
Minimum Operating Temperature (°C)	-10
Maximum Storage Temperature (°C)	70
Minimum Storage Temperature (°C)	-40
Boot Color	Clear
Color	Off White
Flammability Rating	LSZH
Standards Met	Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A requirements; Meets IEC 60603-7; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; UL 1863; RoHS Compliant
IEC Variant	60603-7
PoE Compatibility	PoE, PoE+, PoE++
Plug Type	8 Position
Part Features	MaTriX Technology, Superior headroom warranty, Flexible cable design, Center de-embedded plug, Patented tangle-free latch
