Panduit UTP6AL3MBU | Pan-Net Cat 6A UTP Patch Cord is a 3-Meter
Description
Description

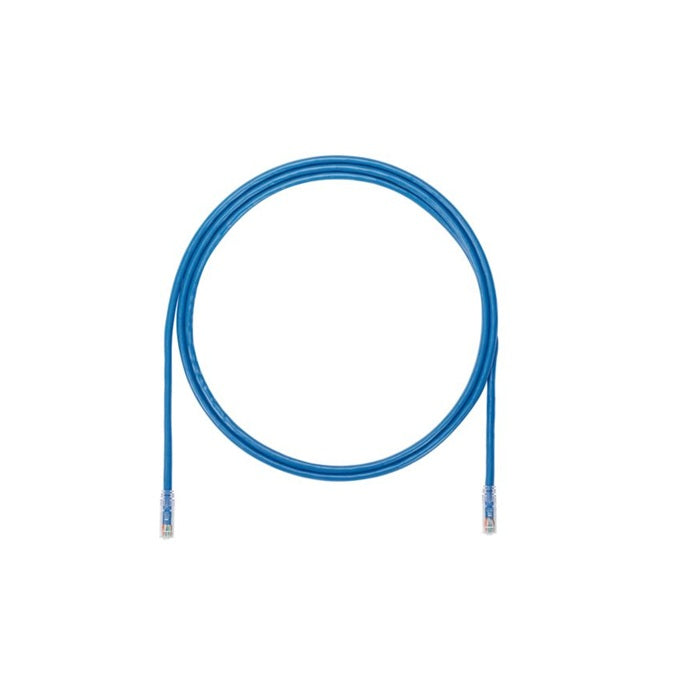

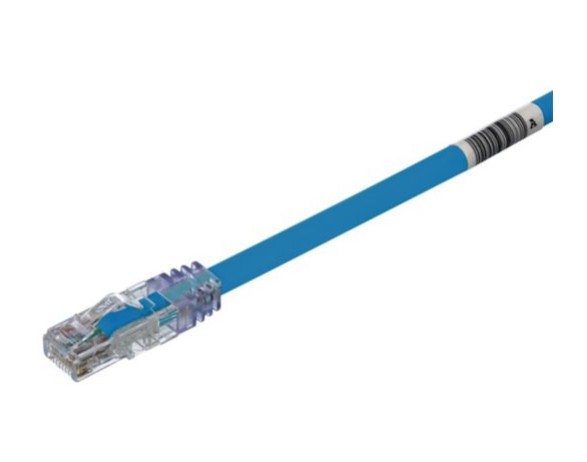

The TX6A 10Gig Cat 6A UTP Patch Cord is a 3-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - UTP6AL3MBU - Specifications
| Product Type | Patch Cord |
|---|---|
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Conductor Gauge (AWG) | 24 |
| Conductor Gauge (kcmil) | 0.4 |
| Sub Brand | Pan-Net® |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | U/UTP |
| Patch Cord Type | Unshielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Nominal Cable Outside Diameter (mm) | 6.8 |
| Wiring Scheme | RJ45/T568B |
| Maximum Operating Temperature (°C) | 60 |
| Boot Color | Clear |
| Color | Blue |
| Flammability Rating | LSZH |
| Plug Type | 8 Position |
Panduit - UTP6AL3MBU - Package Information
| UPC | 7498364916 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0535 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.5354 |
